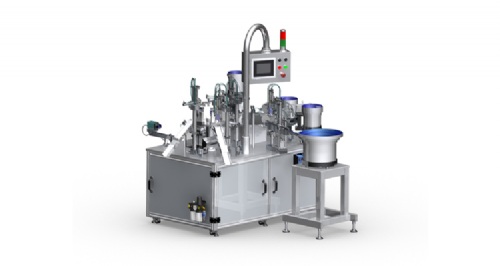

Assembly & Inspection Machine
Model: AS-R801
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Assembly Machines
Characteristics
Product Usage
Special-Purpose Machines for correction pen head
Disc workstations operating mode
auto feed of 3(2.3) mm metal head >>>auto feed of steel pin>>>expelling of imperfect steel pin>>>auto feed of spring �w expelling of imperfect spring>>>auto feed of correction pen head �w press-fitting>>>leakage check>>>completion of pen head assembly.
1:Fabricated by extruded aluminum member. Structural parts are made of SUS#304 stainless steel and aluminum.
2:No placement will occur unless feeding conditions have been met.
3:Mitsubishi PLC combined with LCD touch screen control panel
4:Parameters can be set digitally via human machine interface for easy operation.
5:Workstation turn table mold is actuated by intermittent motion mschanism for accurate allignment
6:Sensor monitoring as well as human machine inticating are actine during start up and/or standby.
Specifications
Specifications
1640mm(L) X 1650mm(W) X 1750mm(H), refer to figure.
Productivity
45 pcs/min
