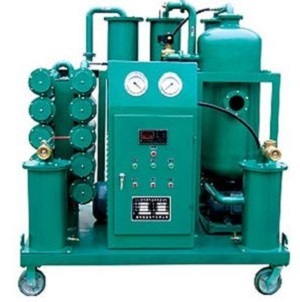

Coalescing Oil Purifier
Model: 998777
Category: Automatic/Industrial Machines & Equipments / Chemical Industry Machines / Separators
Characteristics
Application
Coalescence-separation oil purifier adopts advanced polymer fibre as the filter medium combined with the special oil-water separating device to make it is good at breaking emulsion and filtering. It can effectively separate water from oil. it can work online with turbine system for breaking emulsion and filtering, also it can separate particles and mass water from light oil. it works without heating and vacuum source, less power consumption, low operation cost. use of trolley structure, light weight, easy operation.
Specifications
| Index name | unit | K10 | K20 | K30 | K50 | K80 | K100 | K200 | |
| Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 4800 | 6000 | 12000 | |
| Working pressure | MPa | ≤ 0.3 | |||||||
| Demulsifying value | min | ≤15/min(GB/F7035) | |||||||
| Water content | ppm | ≤100 | |||||||
| Cleanness | ≤ NAS 6 GRADE | ||||||||
| Power supplier | 380V 50HZ 3Ph(As per user’s option) | ||||||||
| Working noise | dB(A) | ≤65∼80 | |||||||
| Total power | Kw | 0.75 | 0.75 | 0.75 | 2.2 | 2.2 | 3 | 5.5 | |
| Weight | kg | 350 | 380 | 420 | 550 | 650 | 700 | 800 | |
| Dimension | L | mm | 1300 | 1300 | 1500 | 1500 | 1650 | 1650 | 1750 |
| W | mm | 750 | 750 | 950 | 1050 | 1200 | 1300 | 1400 | |
| H | mm | 1450 | 1450 | 1500 | 1500 | 1550 | 1550 |
1650 |
|
