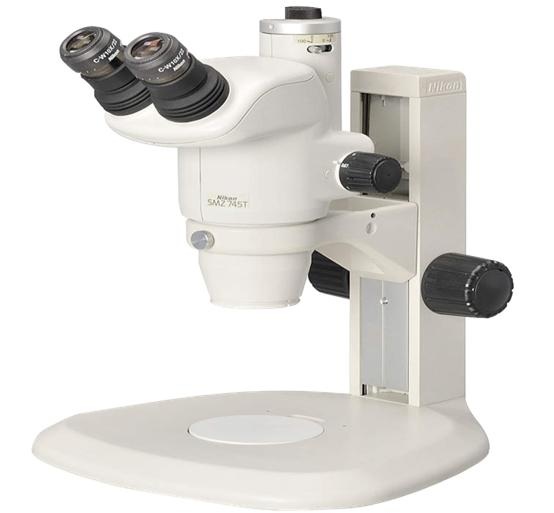

NIKON Stereoscopic Microscope
Model: SMZ745 /745T
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
The SMZ745/745T boasts a 7.5x zoom that incorporates the
Greenough optical system. The zoom range of 0.67x to 5x provides a
broad observation range
The SMZ745T incorporates an optical path switching lever that
enables easy switchover between eyepiece and camera. Nikon
Digital Sight series camera can be attached.
Specifications
Optical system Greenough optical system
Total magnification 3.35-300x (depending on eyepiece and auxiliary objective used)
Vertical tube Built-in C-mount 0.55x magnification lens (F.N. 11), compatible
with 2/3 in. or smaller CCD
Eyepiece tube Fixed type
Eyepiece inclination 45 °
Interpupillary distance adjustment 52-75 mm
Eyepieces (with diopter adjustment) C-W 10xB (F.N. 22), C-W 15x (F.N. 16), C-W 20x (F.N. 12.5),
C-W 30x (F.N. 7)
Zoom range 0.67-5x
Zoom ratio 7.51
Auxiliary objectives G-AL 0.5x (W.D. 211 mm), G-AL 0.7x (W.D. 150 mm),
G-AL 1.5x (W.D. 61 mm), G-AL 2x (W.D. 43.5 mm)
Working distance 115 mm (standard)
Weight 1.55 kg (SMZ745), 1.8 kg (SMZ745T)
F.N.: Field Number
