Enlarge

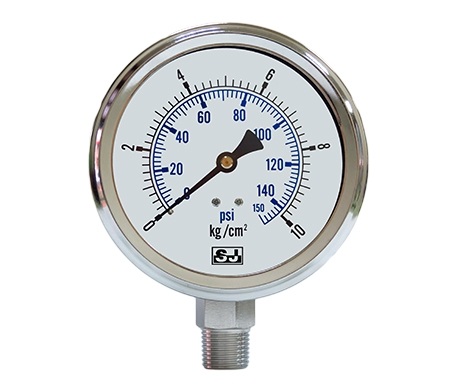

All stainless steel pressure gauge

Model: PRSS

Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Pressure Gauges

Online Inquiry

Characteristics

Features:
1. All steel pressure gauge is the best choice for outdoor installation
2. The whole white iron pressure gauge case and frame are SUS304 stainless steel, and the mouth part is SUS316 stainless steel.
3. Suitable for liquids or gases that are not aggressive to stainless steel

Panel size
2-1/2" (63mm), 3" (75mm), 4" (100mm)

Measuring range
30 inHg Vac .~15,000 psi
76 cmHg Vac. ~1000kg/cm2

Screw type
PT, PF, NPT

Table window
PC is a regular product, and glass can be ordered.

Shell\box
SUS304 stainless steel

Connector size
1/8", 1/4", 3/8", 1/2"

Pointer
Black aluminum alloy sheet

Connector
1/8", 1/4", 3/8", 1/2" PT

Baden tube
316SS stainless steel

Precision
±2% F.S.(1-1/2", 2")
±1.5% F.S. (2-1/2", 3", 4")

Allowable temperature range
-20 ° C to 60 ° C

Tooth mouth
316SS stainless steel
