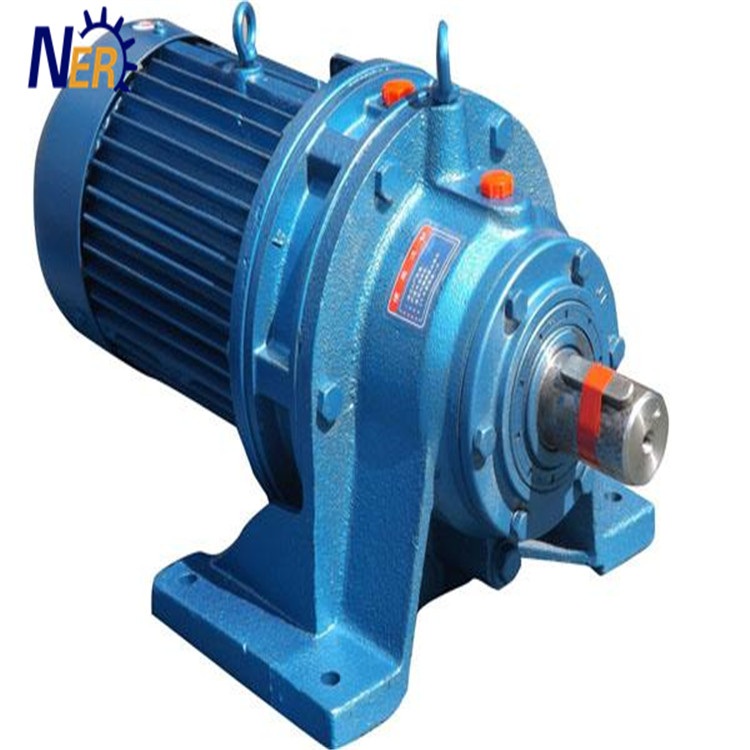

Cycloidal Pin-wheel Gear Reducer Bld/xld Flange Mount Reducer
Model: XLD6
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
High-speed ratio and high-efficiency single-stage transmission can achieve a reduction ratio of 1:87, and the efficiency is above 90%. If multi-stage transmission is adopted, the reduction ratio is larger.
Compact and small size Due to the planetary transmission principle, the input shaft output shaft is on the same axis, making the model as small as possible.
Smooth running noise Low Cycloidal pin teeth have a large number of teeth, a large overlap coefficient and a mechanism for balancing the components, so that vibration and hum are limited to a minimum.
Reliable use and long service life Because the main parts are made of high-carbon chrome steel, high strength is obtained by quenching treatment (HRC58~62), and some transmission contact adopts rolling friction, so it has long durability and long service life.
Specifications
Cycloidal Pin-wheel Gear Reducer Bld/xld Flange Mount Reducer
@Hydraulic cycloidal drive electric motor gear reduction DESIGNATION
Example: BW(E)D41-1225-0.37-W
B: B series cycloidal speed reducers for electric motors
W: Horizontal speed-reducers, with inline shaft.
(E): None-one stage, E-two stage, S-three stage
D:Standard electric motors
41: Model number 41
1225: Speed Reduction Ratio
0.37: Electric motor power:0.37kw
W: Mounting way.
All models of this Cyclo Gear Motor are
B09,B0,B1,B2,B3,B4,B5,B6,B7,B8,B9,B10,B20,B31,B41,B42,B52,B53,B63,B74,B84,B85,B2009,
B310,B420,B531,B631,B742,B852,B953.
Reduction ratio mainly is 7,9,11,17,23,29,35,43,59,71,87,99,121,187,289,391,493,595,731,841,1003,1225,1505,1849,
2065,2065,2537,3481,4189,5133,7569.
Application cases
Cycloidal gear reducer can be widely used in petroleum, environmental protection, chemical, cement, transport, textile, pharmaceutical, food, printing, lifting, mining, metallurgy, construction, power generation and other industries, as a driver or reduction gear.
@Hydraulic cycloidal drive electric motor gear reduction FEATURES
Paint Color: Various
Cooling System: Fan cooler
Material: Rugged cast iron or ductile housings(HRC58-62)
Noise Level: Low type 65-75 Db, Smooth and stable running
Transmission stage: 1 and 2, High speed ratio and efficiency
Working: 24 hours continuous available and shaft forward reverse
Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need
