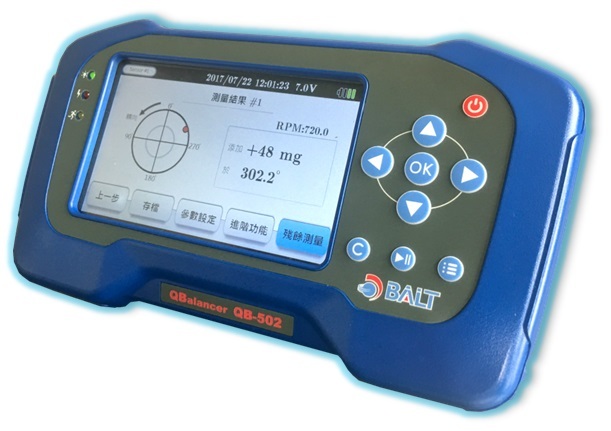

QB-502

Enlarge

QB-502

Model: QB-502

Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts

Online Inquiry

Characteristics

• Spindle/motor/cooling-fan balancing
• Single/dual/three planes balancing utilities
• Vibration spectrum analyzer utilities
• Long life battery > 10 hours
• Guided interface, easy to use
• Radar display, intuitive operation
• Resistive touch panel
• IP65 waterproof
• Quick reporter
• Wireless printer
• USB data output
• Multiple Hot-keys
• Auto power saving

Specifications

1. Resistive Touch Screen－Adapt to various harsh environments

2. Graphical Interface－Hot-key, invoke utilities faster

3. IP65 waterproof design－Industrial oil-proof / water proof

4. User friendly HMI－Ergonomic , single-hand operation

5. Convenient tripod－Different viewing angles

6. BNC signal connector－For a variety of sensors interface

7. Industrial accelerometer / Long-distance RPM tachometer－ Magnetic holder installation faster, automatic sensitivity tachometer up to 200,000 RPM

1. Handheld wireless printer (optional)－After Balancing, outputting report immediately

2. Thermal printer power saving－Automatic power off, longer working life time

3. Laser tachometer distance >3.0 meter－ Precise laser detects a larger angle (45 degrees)

4. High performance Laser Tachometer－Tachometer measuring range >200,000 RPM

5. Insulated magnetic base－Isolated site environment leakage and poor grounding of the machine

6. Industrial accelerometer, CE/UL－ Low noise immunity, industrial grade protection

7. Bluetooth wireless transmission/wireless printing/remote control－Making and exporting reports is more convenient. It is easier to set up the host computer wirelessly. Wireless communication makes you worry-free.

1. A multi-functional software－Dynamic Balancing, Spectrum Analyzer, Multi-functional vibration meter, Grinder Balancer

2. ISO1940 International Standard－Automatically calculate the balance level of the rotor

3. Radar Display－ Intuitive display how to quickly balancing

4. Single/dual/triple planes balancing－Applicable to various kinds of dynamic balancing correction situation

5. Multi-language interface－Chinese / English language selectable

6. Add mass or removing mass－ Elastic ways for different balancing correction method

7. Convenient report software－ Easier to print reports with balanced results

8. Excel format report output－Make and share balancing reports more flexible and easier

9. Depth of drilling / hole distribution－Automatic hole distribution , Correct balance more quickly

10. Automatic software updates－ Lifelong software is free to update and more secure

11. Smart power saving mode－ Automatic shutdown, longer machine usage more than 10 hours

12. Vibration spectrum analyzer－ Spectrum analyzer quickly finds the different kind of vibration source
