Instrument Ball Valve / trunnion ball valve / casting ball valve
Model: Instrument Ball Valve / trunnion ball valve / cast
Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Pneumatic Components
Characteristics
* Material of body: SS316
* Different series to satisfied your need:
- 2BV series: 2PC ball valve for 1000 psig working pressure

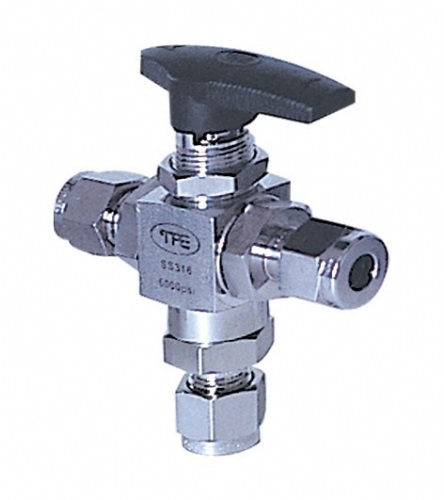

- 3BV series: 3PC ball valve for 50 kg, 3000 psig, 6000 psig, and 10000 psig working pressure. 3-Way pattern is available for 3000 psig and 6000 psig ball valve.
- TBV series: trunnion ball valve for 6000psig and 10000psig
- BVL series: casting ball valve for 1000psig
Specifications
1. Black handle with arrow indicates flow direction.
2. 2-way on-off and 3-way switching models for option
- 2BV series (2PC ball valve for 1000psig working pressure)
- Two pieces hexagon body construction.
- With Viton O-ring
- End connection: JPE compression tube end / Male BSPT thread / Male NPT thread
- Size: 6 mm ~ 18 mm; 1/4" ~ 3/4"
- 3BV series (3PC ball valve for 50kg, 3000psig, 6000psig, and 10000psig)
- With Viton O-ring
- End connection: JPE compression tube end / Male BSPT thread / Male NPT thread / Female BSPT thread / Female NPT thread
- Size: 6 mm ~ 18 mm; 1/8" ~ 3/4"
- TBV series (trunnion ball valve for 6000psig and 10000psig)
- With Viton O-ring
- End connection: JPE compression tube end / Male BSPT thread / Male NPT thread / Female BSPT thread / Female NPT thread
- Size: 10 mm and 1/4"
- BVL series (casting ball valve for 1000psig)
- 1PC reducing port / 2PC full port / 3PC construction for option
- End connection: Female BSPT thread / Female NPT thread
- Size: 1/4" ~ 2"
