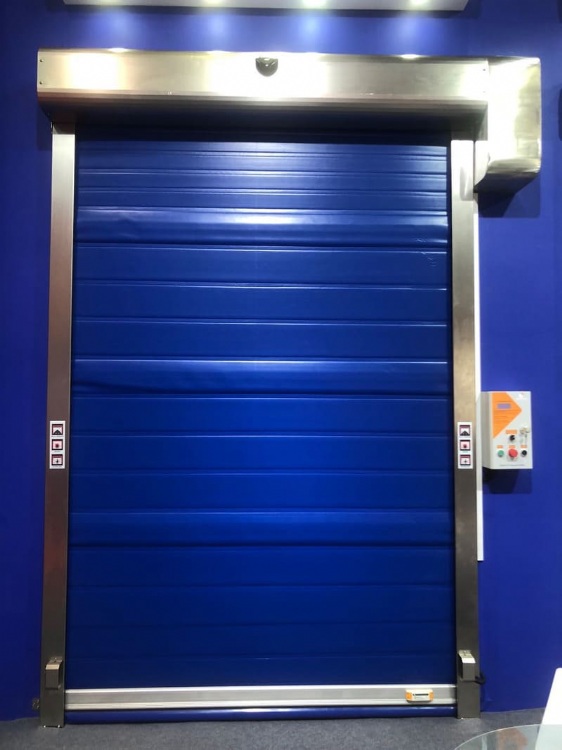

Thermal Insulation Zipper Door
Model: Bast thermal insulation zipper door
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
1.Curtain: the curtain has its own thermal insulation PU foam layer,with a total thickness of 3mm. The curtain blank is about 14mm thick after processing.
2.Sealing: the structural design and application of the top and bottom sealing of the door body can effectively isolate the air pressure convection on both sides of the door body, further strengthen the air tightness, and reach the National Standard Level 3.
3.Wind resistance: the curtain guide parts, curtain and guide rail are closely matched in the door body operation guide system, and the material has strong wear resistance, which ensures the overall wind resistance. The wind resistance grade of the national standard is 8
https://www.bastdoor.com/Thermal-Insulation-Zipper-Door.html.
Specifications
Technical Descriptions
Heating and anti-freezing device: The design and application of the heating mechanism can avoid the freezing of the guide rail due to the heat exchange caused by the frequent operation of the door, and further ensure the stable operation and working efficiency of the door in a low temperature environment. At the same time, you can choose to remove the box equipment according to your needs, to double guarantee the product's working performance in low temperature environment, the working temperature is from minus 1 ° to minus 28 °.
Operating speed: opening speed: the opening speed is up to 0.6-1.2M / S, adjustable.
Closing speed: The closing speed is not lower than 0.6M / S, which can be adjusted.
Track: The track is made of polymer material, and the frame is made of stainless steel SUS304.
https://www.bastdoor.com/Thermal-Insulation-Zipper-Door.html
