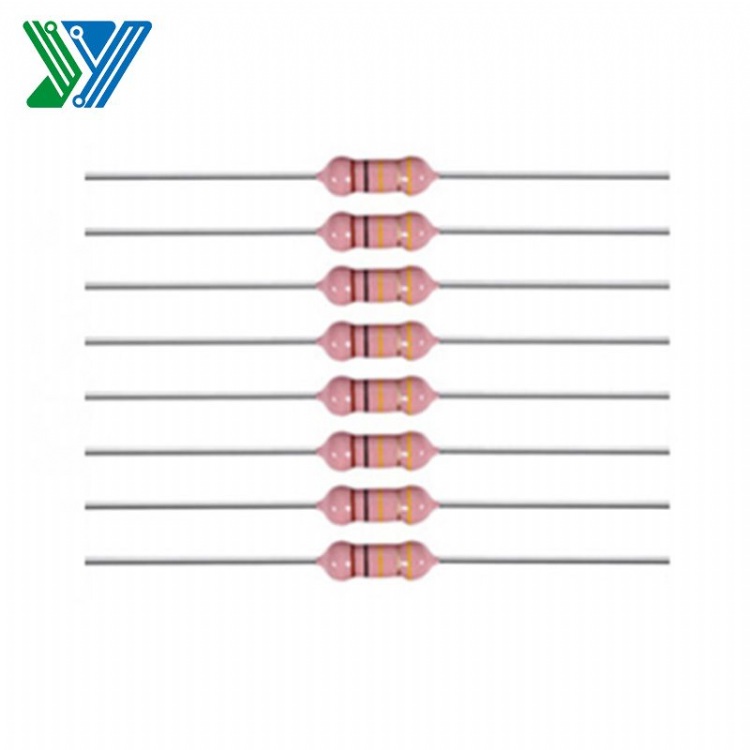

Metal glaze resistor
Model: Metal glaze resistor
Category: Machinery Parts and Components / Metal Products / Steel Wire Ropes, Steel Wires
Characteristics
Metal glaze resistor
Specifications
Product Description
High resistance value.small size. endure high temperature. high voltage good performance cnduring moisture and good overload capability.
1. High resistance value.small size. endure high temperature. high voltage good performance cnduring moisture and good overload capability
2. Operating ambient temperature:-55℃~+125℃。
3. Surface is nonflammable. The normal size coats brick red and small size coating is gray white. That add a yellow ring at the behind of the precision color rings to distinguish the resistors types.
4. Resistance tolerance: ±1%, ±2%, ±5%, ±10%
Dimensions and Voltage Performance
|
Power |
Resistance range |
Dimensions（mm） |
Max. working voltage |
Max. overload voltage |
Max. Pulse voltage |
Max.insulation voltage |
|||
|
L±1 |
D±0.5 |
d±0.05 |
H±1 |
||||||
|
1/4W |
1K~75M |
6.0 |
2.3 |
0.45 |
26.0 |
350V |
700V |
700V |
500V |
|
1/2WS |
1K~75M |
6.0 |
2.3 |
0.45 |
26.0 |
350V |
700V |
700V |
500V |
|
1/2W |
1K~75M |
9.0 |
3.2 |
0.55 |
26.0 |
500V |
1000V |
1000V |
750V |
|
1WS |
1K~75M |
9.0 |
3.2 |
0.55 |
26.0 |
500V |
1000V |
1000V |
750V |
|
1W |
1K~75M |
11.0 |
4.5 |
0.65 |
26.0 |
700V |
1400V |
1400V |
1000V |
|
2WS |
1K~75M |
11.0 |
4.5 |
0.65 |
26.0 |
700V |
1400V |
1400V |
1000V |
|
2W |
1K~75M |
15.0 |
5.0 |
0.70 |
26.0 |
750V |
1500V |
1500V |
1100V |
|
3WS |
1K~75M |
15.0 |
5.0 |
0.70 |
26.0 |
750V |
1500V |
1500V |
1100V |
|
3W |
1K~75M |
24.0 |
8.0 |
0.70 |
26.0 |
800V |
1600V |
1600V |
1200V |
|
5WS |
1K~75M |
24.0 |
8.0 |
0.70 |
26.0 |
800V |
1600V |
1600V |
1200V |
For more details please click: www.xy-resistor.com
