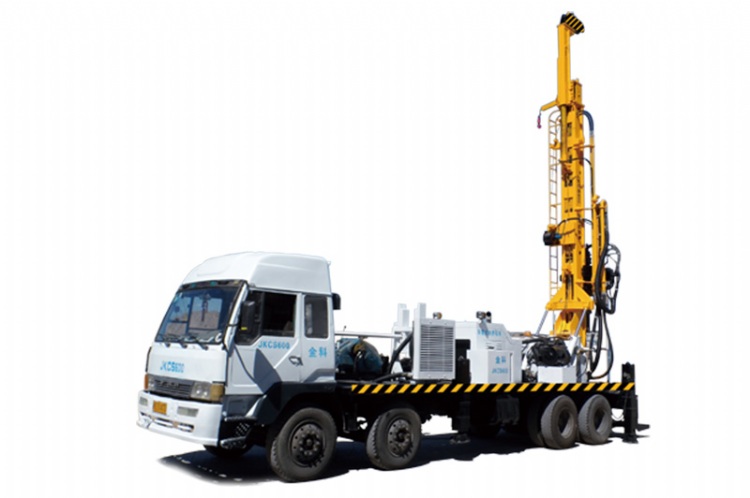

JKCS600 Truck Mounted Well Drilling Rig
Model: JKCS600
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Others
Characteristics
JKCS600 Truck Mounted Well Drilling Rig
Specifications
JKCS600 truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy-duty hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
|
Borehole Diameter |
φ140-450mm |
|
Borehole Drilling Depth |
600m |
|
Working Air Pressure |
1.05-6.9MPa |
|
Air Consumption |
16-35m³/min |
|
Rod Diameter |
φ89/ φ114mm (optional) |
|
Rod Length |
4.5m |
|
Lifting Force |
32t |
|
Axial Pressure |
±10t |
|
Lifting Speed |
5-25m/min |
|
Feeding Speed |
10-36m/min |
|
Rotation Torque |
6500N.m (first gear ) |
|
13000N.m (second gear) |
|
|
Rotation Rate |
0-160rpm (first gear) |
|
0-80rpm (second gear) |
|
|
Dimension (L x W x H) |
9100mm x 2400mm x 3600mm |
|
Lifting Force of Auxiliary Winch |
4t |
|
Lifting Force of Tooling Winch |
1.5t |
|
Mud Pump |
Optional |
|
Generator |
Optional |
|
Rotation System |
Optional |
|
Weight |
17t ( Excluding Vehicle） |
