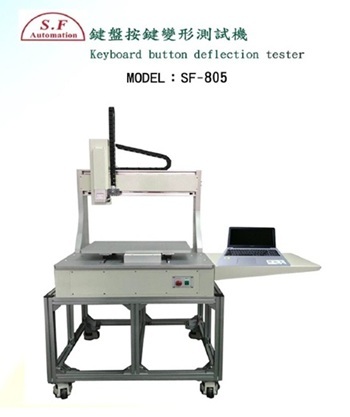

Keyboard Button Deflection Tester
Model: SF-805
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Assembly Lines
Characteristics
*This machine is suitable for testing on deflection push press at keyboard button of
various smart phone, IPAD, Notebook computers, personal computers and push keys, etc.
*Three sets moving driving axis controlled by servo motor + ball screw.
*It is able to do push press loading test, and promptly to catch changes values of loading and stroke.
*By operating data guiding setting on screen of LabView testing software, it is able to meet customer
requirement for proceeding various designs.
*Parameters setting of testing method (capable of setting various speed of forward stroke, backward
stroke, original position of Z axis, times of testing, cycle times, etc. parameters).
*All of data can be saved (testing conditions, loading-stroke curve graphics, inspection report, etc..).
