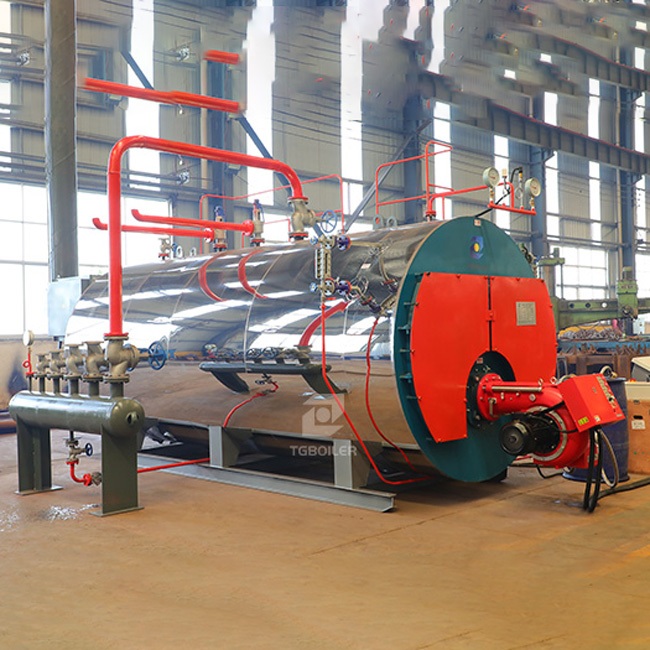

Quick-Assembly Type WNS Series Oil & Gas Steam Boiler
Model: WNS-1
Category: Machine Tools / Others / Other Machinery
Characteristics
Brief Introduction
WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Product Application
Textile, Garment, Food & Beverage, Chemical Industry, Cement Curing, Disinfection,etc.
Specifications
Steam Capacity: 500 to 20,000 KG/H
Boiler Power: 32 to 1,278 HP
Pressure: ≤16 Bar
Fuel: Natural Gas, #2 Light Oil, Heavy Oil
