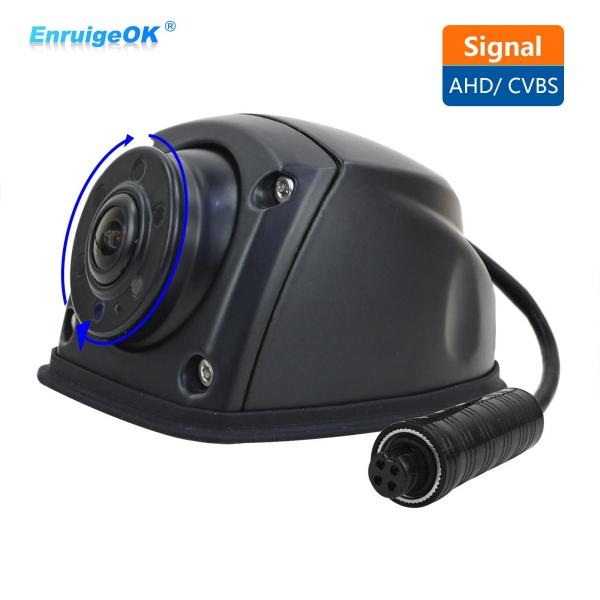

EnruigeOK Side View Parking Camera AHD 1080P Night Vision Waterproof for Heavy Duty Truck
Model: ERG-S04
Category: Machinery Parts and Components / Other Machinery / Other Machinery
Characteristics
Features:
-Applicability: Suitable for all kinds of large vehicles such as trailer, bus, truck, camper and RV etc..
-High Quality Image: AHD Vehicle backup camera will give you a perfectly clear, high definition image for perfect results.
-Completely Waterproof: Waterproof Nano Glue Sealing All electronic components are 100% immersed in nano waterproof glue With an IP68 rating and ready to brave the elements.
-Extruded Aluminum Housing: Made of extruded aluminum case which is provides structural integrity, ensuring that the camera can perform well even under extreme conditions.
Specifications
| Specifications: | |
| AHD Camera: | CVBS Camera: |
| - Image sensor: 1/3 "CMOS | - Image sensor: 1/3 "CMOS |
| - TV system: PAL/NTSC | - TV system: PAL/NTSC |
| - waterproof rating: IP68 | - waterproof rating: IP68 |
| - Viewing angle: 120 ° | - Viewing angle: 120 ° |
| - Effective pixel: 1920(H)x1080(V) | - Effective pixel: 733(H)x493(V) |
| - Horizontal sync frequency: 15.625KHZ | - Horizontal sync frequency: 15.625KHZ |
| - Scanning system: 2:1 interface | - Scanning system: 2:1 interface |
| - Sync system: Internal | - Sync system: Internal |
| - ACG: Auto | - ACG: Auto |
| - BLC: Auto | - BLC: Auto |
| - Resolution: 1080P | - Resolution: 700 TV Lines |
| - S/N Ratio: >52dB(AGC OFF) | - S/N Ratio: >52dB(AGC OFF) |
| - Current consumption: < 150mA | - Current consumption: < 150mA |
| - Minimum illumination: 0.1-0.5Lux / F = 1.2 | - Minimum illumination: 0.1-0.5Lux / F = 1.2 |
| - Power supply: DC12V | - Power supply: DC12V |
| - Power: 5W | - Power: 5W |
| - Operating temperature: -20℃ to +70℃ | - Operating temperature: -20℃ to +70℃ |
