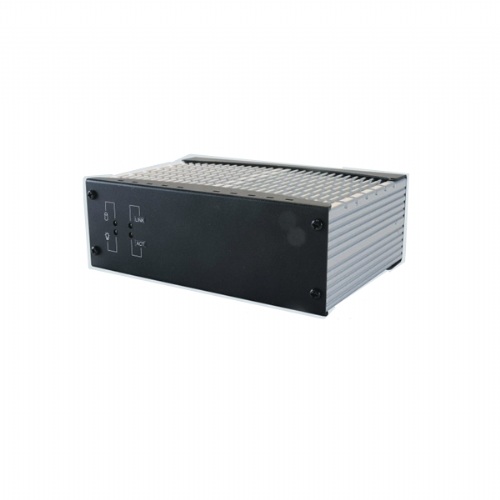

Small System
Model: FX5320
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Peripheral Equipment for Automated Machinery
Characteristics
Function Items FX5320
CPU Board INTEL 945GSE + ICH7M
@ Processor Atom N270 1.6GHz
@ DRAM 1GB DDR2
@ DRAM Socket 200-Pin SoDIMM *1 (DDR2, 2GB Max)
I/O Connector @
@ KB/Mouse Yes
@ Serial RS232/422/485 *1
@ Parallel -
@ USB 4 (2.0)
@ LAN Giga LAN *1
@ VGA DVI
@ Dual Display Yes (Option)
@ Audio Yes
@ GPIO -
@ BUS I/F Mini-Card Slot *1
Storage Bay @
@ CF Slot Yes
@ HDD Space 2.5" *1 (SATA)
Power Required @
@ Input Voltage DC 12~24V
@ Rated Current 30VA Max
Operation System Windows 2K / XP / XPe, CE, and Linux
Operation Environment Temperature 0XC to 50XC (32K to 122K)
Compliances CE / FCC / RoHS
Dimension (W x D x H) 145 x 102 x 50 mm
Specifications
Atom-N270 1.6G Small System w/1S,
VGA,1Giga-LAN, 4USB,
Audio & CF/mCard Socket
