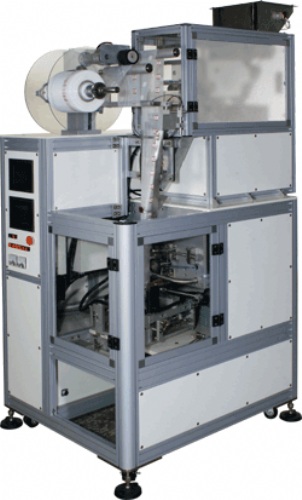

Auto Tea Bag Packing Machine
Model: Auto Tea Bag Packing Machine
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Other (Packaging Machine)
Characteristics
1. Just one touch, you can easily switch one packaging type to
the other.
2. Using a well-designed scale systemSetting different modes
according to different kinds of filler to achieve the highest
speed and accuracy.
3. Ultrasonic sticking and cutting system controlled by PLC,
which is safe, efficient, and eco-friendly.
With built-in overload protection and alarm output.
4. HMI Touch panel provides comprehensive setting function.
You can adjust parameters to satisfy your need.
5. Applicable packing materials ：Non-woven fabric, Nylon/PET
mesh, BiodegradableMaterial.
(It can connect with AT-146 AutoTag and String attachment
Machine )
Specifications
Capacity：Max. 50 bag/min
(Is decided the packing original material to be different,
but has the difference)
Packing Material：NWF , Nylon/PET mesh, Bio-degradable
Packing Method：Sticking and cutting by ultrasonic
Bag Size：Pyrami：58~78mm
Plane：45~100mmW58~78mm
Feeding System：Multihead weigher(4 loadcell)
Filling Range：2~12g
Power Supply：AC220V, 50/60Hz, 3P, 3.0KW
Pneumatic Pressure：5Kg/cm2 (0.5MPa)
Dimension：1325mm(L)x850mm(W)x1980mm(H)
Weight：450Kg
Standard Accessories：
Touch panel HMI 、Ionizing Generators、Tag detector、
Ultrasonic overload protection、Liner & waste collection device
Option：Conveyer unit
