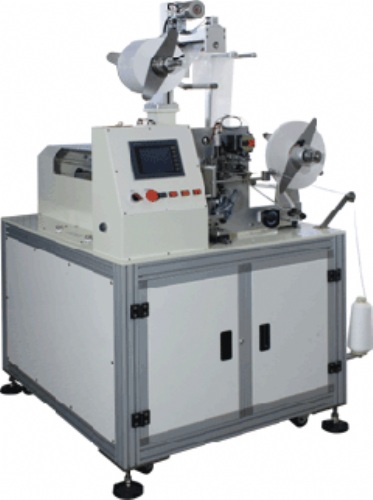

Auto tag and string attachment machine
Model: Auto tag and string attachment machine
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Other (Packaging Machine)
Characteristics
1. The length of bag and string are adjustable. The machine is easy
to operate and it can satisfy the frequent changes of the markets.
2. Ultrasonic sticking system control by PLC, which is safe, efficient,
and eco-friendly. You can adjust the setting according to different
material.
3. HMI Touch panel provides comprehensive setting function. You
can adjust parameters to satisfy your need and reach the high
level of flexibility.
4. Applicable packing materials：Non-woven fabric, Nylon/PET mesh,
Biodegradable Material.
( It has to connect with AR-180 Auto Material Receiving Machine
orAP-146 Auto Tea Bag Packing Machine )
Specifications
Capacity：Max 60pcs/min
(is decided packing material and line length is
different, but has a difference)
Packing Material：NWF , Nylon/PET mesh, Bio-degradable
Packing Method：Sticking by ultrasonic
Bag Size：W140~160mm
Power Supply：AC220V, 50/60Hz, 3P, 3.0KW
Pneumatic Pressure：5Kg/cm2 (0.5MPa)
Dimension：1100mm(L) x 1090mm(W) x 1822mm(H)
Weight：520Kg
Standard Accessories：Touch panel HMI、Tag color mark sensor、
String length serve adjustment unit
Option：(AR-180) Auto Material Receiving Machine
