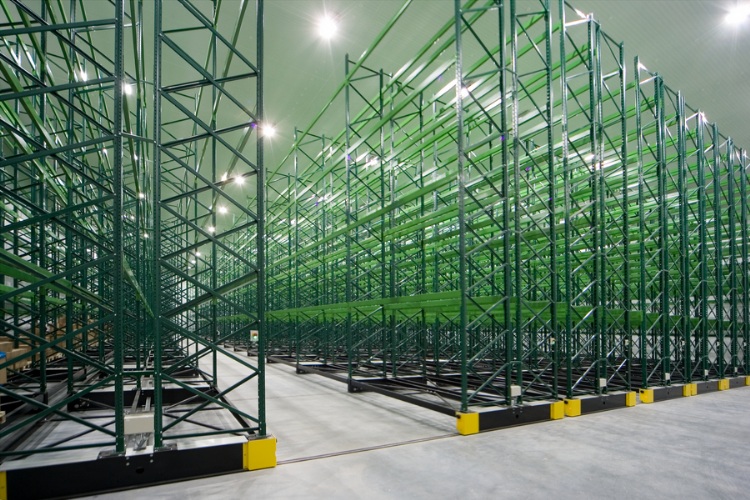

Electric Mobile Racking System
Model: Electric Mobile Racking System
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
1. Only one loading aisle and one main aisle required to maximize the usage space of a warehouse
2. The system can be use in cold store warehouse, Electronic, Machine manufacturers, Food processing(Cold Rooms), Packaging, Plastics, Logistic provider, Pharmaceuticals
3. Max. Length 42 meters for mobile base
4. Strong, durable, modern design and high security
5. Modular UNP-Frame construction
6. Wheels are design to take 6, 9, 12 ton
7. Light barrier technology to protect
8. Ram protection
9. According to F.E.M the speed is set at 4 m/min.
10. Max. Breaking distance 15 mm
11. Indirect 0,55 kw drives to save powers
12. Using RF Handheld Remote Control, operator can control at forklift truck without stepping down to press bottom
13. Manufactured under the norms ZH1/428 and
the latest European regulations.
14. Base Protection Plate to avoid accident of crushing the sensor
15. Main control box with main control panel and junction box
16. Emergency bottom are located inside the aisle for emergency use
17. PLC we use SIEMENS 7
18. Night Parking Function (Can divide the aisle equally to several aisles for cold air to circulate)
19. Warning lights
20. Preset picking aisles
21. 24 hours monitoring for customer
Specifications
Please write email or call for advice
