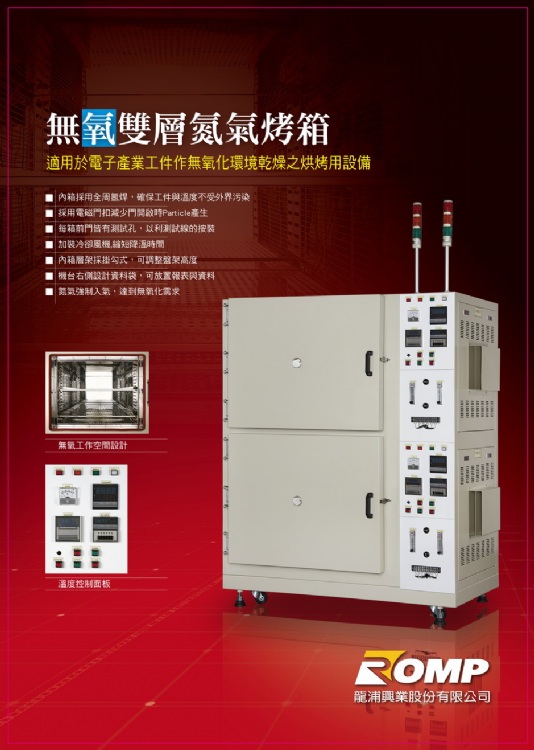

Oxidation-Free Double Chambers Nitrogen Oven
Model: Oxidation-Free Double Chambers Nitrogen Oven
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Dryers
Characteristics
1.Argon Welded inside chamber, in order to keep out the interference to the workpiece and temperature from outside.
2.Electromagnetic buckle to prevent the particles while the door opens.
3.Designed with input hole on the front door of each oven for the testing wires’ installation.
4.Equipped with cooling fans to shorten the temperature cooling down time.
5.Hooking style racks enable to adjust the height between trays inside the chamber easily.
6.Furnished with a documentary case on the right side of the machine for report papers and documents placed.
7.Nitrogen force input for Oxygen-free purpose.
Specifications
Inner Dimension 710(W)×610(D)×560(H) mm
Overall Dimension 1540(W)×1010(D)×2330(H) mm
Convection Force Air convection.
Power 12KW/Chamber
Temperature Range +25℃ ~ +200℃±1.5%. Approximate 40 minutes from general temperature to 200℃ by empty chamber testing.
Inner & Middle Plate SUS304# Stainless Steel Mirror effect.
Outer Plate SS41# Steel with coating finish.
Insulation Material Grade 100K High-density Rockwool.
Temperature Controller RKC P-200 PID Temperature controller.
Electric Heater Tubular Electro-thermal Tube.
Safety Devices Earth Leakage Circuit Breaker, Temp-Alert, Overload Circuit Breaker, Circuit Fuse.
Nitrogen Flow Meter 50NL/min.
Air Flow Meter 50NL/min.
Air Input Ø10mm
Air Outlet 4"
