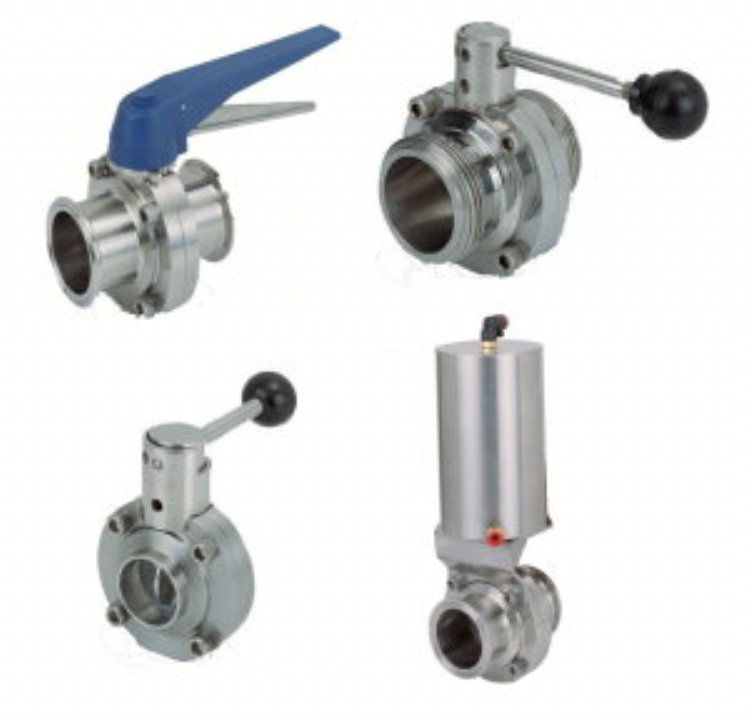

Sanitary butterfly valve,
Model: sv-2312
Category: Machinery Parts and Components / Piping Systems (Pipes, Valves, Fittings) / Stainless Steel Pipes & Tubes
Characteristics
Sanitary butterfly valve, Butterfly Valve
Max pressure: 1.0 Mpa (10bar )
Specification: DN15-200 and 0.5"~8"
Standard: ISO, DIN, 3A, SMS, IDF, RJT, etc
Material: AISI304, AISI316L
Connection: Welded, male, clamped, flanged
Driver: Manual, pneumatic, electric
Manual oparation: Pulling handle, multi-position handle
Pneumatic device: Normally closed, normally opened, opened and closed by two air flues separately
Electric drive: (DC)12V, 24V, 36V (AC)220V, 380V
Seal ring: Silicon rubber, EPDM or FPM
Application: Dairy, beverage, food, beer, pharmaceutical, biotechnology, cosmetic etc.
Specifications
Bell Industry Co Limited was established in 2002 that specializes quality Sanitary Stainless Steel Tubes, Tube Fittings, Valves and Pumps for the dairy, food, beverage, chemical, pharmaceutical, cosmetic and many other plants where sanitary flow control is a must. Our trained and professional staffs had accumulated more than 10 years of experiences in these industries and we have highly automated facilities in China. These allow our products to be made with the highest quality and meet the strictest specification..
We are supplying :
1.) Sanitary stainless steel tube and pipe hanger.
2.) Sanitary stainless steel butt-welding fitting & union fitting-elbow, tee, cross, concentric reducer, eccentric reducer and union. ( welding male, welding liner and seal )
3.) Sanitary stainless steel pipe fittings V clamp, ferrule, cap and seal.
4.) Sanitary ball valve V ball valve, butterfly valve, check valve, tank valve, cock valve, sampling valve, control valve and pump.
5.) Others V sight glass, hose adapter, filter, CIP cleaning system, heat converter and floor drain.
International Standards V 3A, BS, RJT, IDF, ISO, DIN, SMS, DS, & BPE.
