Label printer
Model: Label printer
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Other Printing Machines
Characteristics
Funktions and advantages

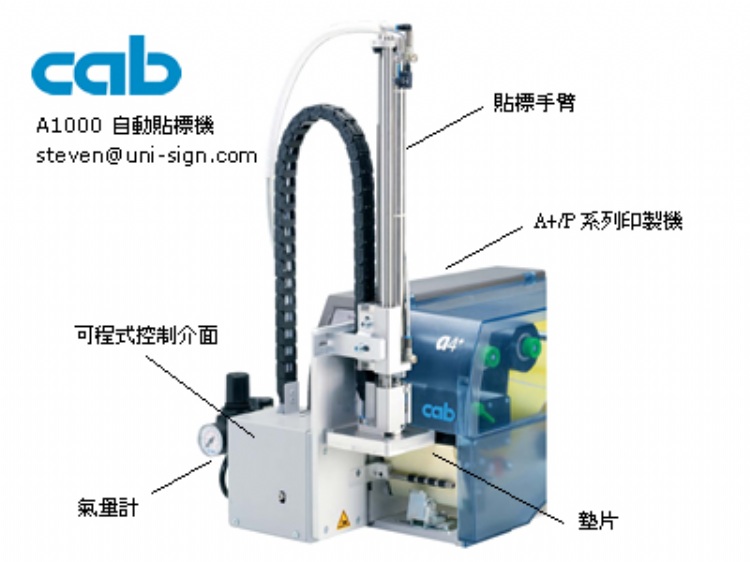

In conjunction with the A2+, A4+ and A6+ printers, the A1000 applicator represents a cost-effective solution for both semiautomatic operation and for integration into automated production lines.
1. Long service life
The ball-bearing guide bars are low-wear.
2. Variable product heights
The lift cylinder allows labelling in different heights. It is available in different stroke-lengths.
3. Easy adjustment
The tamp pad can be adjusted in alignment with the peel-off plate using four screws. Processing control is optimized during testing using the operation panel.
4. Pre-dispense button
Tests the labeling function. Pushing the button the first time causes the label to be printed and held by the pad. Pushing the button again starts the application.
5. Compressed air regulation unit
The microfilters prevent contamination and the compressed air regulator ensures the labelling quality.
6. High process reliability
The supporting air jet stream, induction air and lifting speed can be adjusted. The pressure can be reduced to less than 1 kg for highly sensitive products and packaging. To avoid contamination of the vacuum holes, they are cleaned with air pressure after each application.
7. Real-time application
Labels with a height of 25-200 mm and a width of 25-176 mm can be dispensed.
Digital I/O-Interface
The master (e.g. PLC) starts or stops the labelling process. The status and error messages are issued at the same time.
Stand-alone operation
The layout of the labels is created either with the label software or directly on the PC. Label formats, fonts and graphic data, serial data and data base contents are saved on the CF memory card or on the internal IFFS printer memory. Only the variable data is sent to the printer via keyboard or host computer before being printed out.
