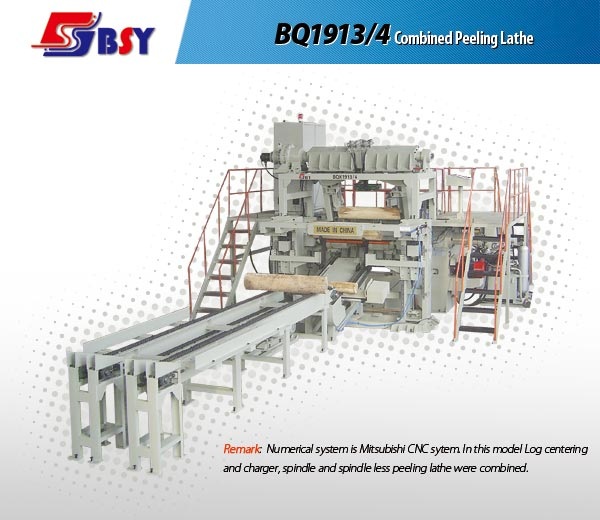

Veneer Peeling Lathe
Model: BQK1913/4
Category: Woodworking Machinery Industry / Veneer & Plywood Manufacturing / 2nd Processing Equipment for Plywood
Characteristics
Max.cutting diameter 400mm
Min.cutting diameter 150mm
chunk diameter 95mm
Max cutting length 1000-1350mm
veneer thickness 0.5-3
Max rotating speed of spindle 0-200rpm
spindle motor power 15kw
single-roll motor 15kw
double-rool motor 8kw
Centering device motor 3kw
Log conveyor motor 5.5kw
Hydraulic motor power 4kw
General Motor 77.7kw
overall dimension 12580*5760*3350mm
weight 22T
