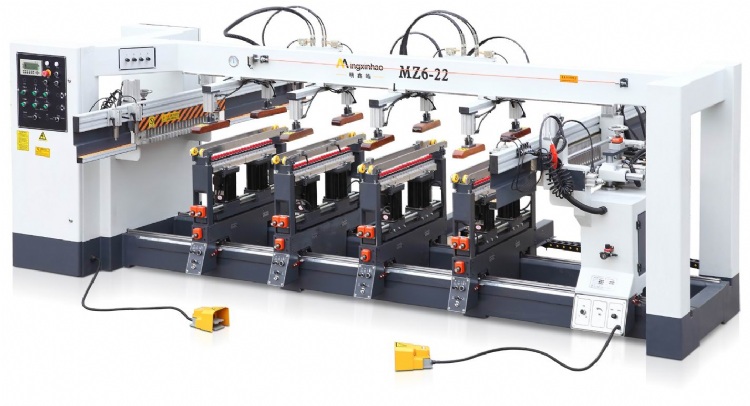

Six Row woodworking Multi- Boring Machine MZ6-22
Model: MZ6-22
Category: Woodworking Machinery Industry / Others / Other Woodworking Machines
Characteristics
We are a leading manufacturer able to offer various kinds of multiple boring machines in order to meet customers’ diversified demands.
1. Idea for all kinds of density boards, based panels and solid wood board
2. The body of machine is adopted heavy-duty rack structural design and use high quality steel material with high-strength heat treatment to keep the machine never deformed demands.
3.Using brand-named touched screen and adopting PLC contol system,the machine is powerful and of lower failure rates.
Specifications
| Max. drilling diameter | Ømax=35mm (single drill) Ød=13mm (multi drill) | Distance between spindle | 3000mm |
| Max. drilling depth | H max=60mm | Working pressure | 0.5~0.6Mpa |
| Max. processing pitch | 3000x672mm | Total power of motor | 15kw |
| Min.processing pitch | 130x32mm | Spindle speed | 2840rpm |
| Total number of drilling shafts | 132pcs | Exterior of machine | 4750x2500x1650mm |
| Total number of drilling rows | 22x2+11x8 rows | Weight of machine | 2400 kgs |
| Installing dia to the drill | Ø10mm |
