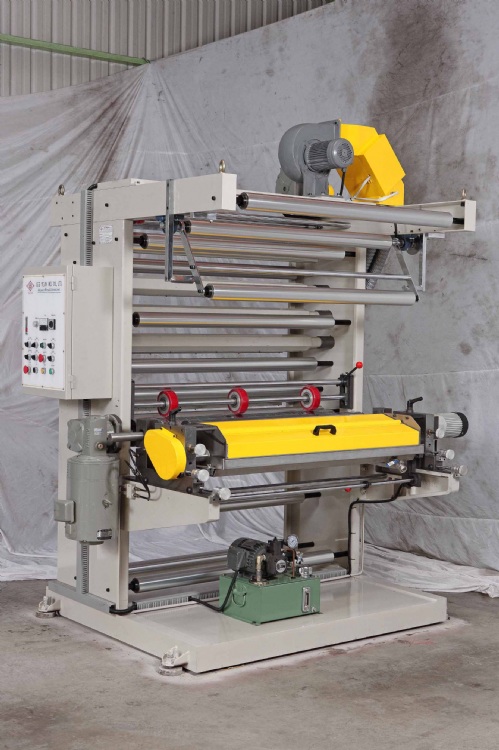

Flexographic Printing Machine
Model: LS-1
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Flexo Printing Machines
Characteristics
COLOR FLEXIBLE: 1
MAX. FILM PASSING WIDTH: 700mm ~ 1700mm
MAX. PRINTING WIDTH: 600mm ~ 1600mm
REPEAT PRINTING LENGTH: 250mm ~ 1000mm
Cooperate with the extruder to make the printing in-line continuously, in-put with the dancing roller to control the films goes into the printing station very even and smooth, machine equipped with the drying chamber ensure the printing pattern and color can be dried accordance with the speed, in-line printing can save the times and process for the operation.
Specifications
PRINTING COLOR FLEXIBLE: 1
MAX. WEB WIDTH: 600mm ~ 1700mm
MAX. PRINTING WIDTH: 500mm ~ 1600mm
PRINTING REPEAT LENGTH : 250 mm ~ 1000mm
MAX. MACHINE SPEED: 80 m/min.
PRINTING SPEED: 20 ~ 70 m/min. (DEPEND ON MATERIALS, DESIGN, AND INK)
