PCB Lead Wire Cutting Machine
Model: KA Series
Category: Machine Tools / Others / Other Machinery
Characteristics
KA-8 PCB Lea Cutter, by hand pushing
● The machine us designed to trim the wire leads off PCB assembly after soldering process.
● The fast turning Tungsten Carbide Blade cuts PCB wire leads while PCB is fed to trails one by one manually.
● Safety sensor stops the machine while acrylic cover is open.
KA-66 Automatic PCB Lead Cutter
● Best Selection for effective production after PCB is soldered.
● KA-66 is designed to trim the extra long leads automatically and efficiently on the PCB that components are inserted and soldered.
● A pair of conveyor chains in KA-66 clamps and delivers the PCB to trim lead wire by high-speed turning blade.
● PCB Warp prevention device is equipped to ensure no damage and equal cut on boards.
● Linking conveyors are expandable. KA-66 can work independently. Optionally, KA-66 can connect with wave solding machines by inlet and outlet conveyors for automatic through production line.

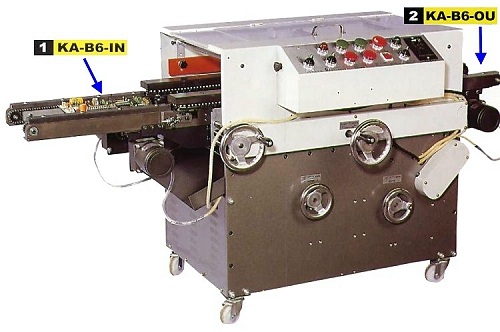

KA-B6 Automatic PCB -Brushing and Lead Cutting Machine
● PCB working Range (Width of feeding trails):10~280mm
● Brush is suitable to clean and brush away lead residuals after cutting.
● Available to connect with Wave soldering machines in mass production.
● PCB Wrap-proof devices is equipped.
● The heights of inlet and outlet conveyors are adjustable to meet various brands of soldering machines convey.
《Standard Accessories》
1. φ250mm Brass / Copper Brush (1 Unit.)
2. Warp-proof Bakelite bar (1 Set )
3. Frame for warp-proof( 4 Sets)
4. Warp prevention thimble wheel ( 1Set )
5. Tool set ( 1 Set )
《Optional Accessories》
1. Inlet connecting conveyor
2. Oulet connecting conveyor
3. Connection Frame
4. Brass / Copper Brush
5. Tungsten Carbide Steel Blade
KA-22 Automatic Twin Blades PCB Lead Cutter
● Duble blades design to trim the extra long leads automatically and with additional brushing system. The effective cutting area up to 420mm.
● The PCB residues after solding and leads adhere on the boards after trimming can be easily removed by the equipped brush system.
● Equipped with adjustable warp correction device in which correct the warp condition of PCB before soldering process.
● The inlet and oulet bridge conveyors are optional selectable which flexible for connecting the wave soldering machine and conveyor line.
● The Tungsten Carbide Blade is excluded in the machine.
Specifications
【KA Series】 PCB Lead Wire Cutting Machine - Cut part's leads off assembled and soldered PCB
| Modle (mm) | KA-8 | KA-66 | KA-B6 | KA-22 |
| Type | Manual Feeding | Automatic | Automatic+Brush |
Twin blade + Brush |
| Thickness Range | 0.8-1.2 & 1.6-2.0 | 0.8-2.5 | ||
| RPM of Spindle | 4500 RPM (Tungesten Carbide is optional) | |||
| HP | 1/2 HP | 3/4 HP | ||
| Feeding Speed | x | 0~3 m / min. Adjustable | ||
| RPM of Brushing | x | 600RPM / 1/5HP Brass/Copper Brush | ||
|
Min. Lead Height |
1.0mm Min | |||
| Max. PCB Working Size | 400(L) x 270(W) | 500(L) x 280(W) | 420(W) | |
| Dimension (LxWxH)mm | 1050x570x750 | 900x670x800 | 1160x730x800 | 2700x1200x1100 |
| Power | 110/220VAC,50/60HZ | 220VAC, 50/60HZ | 308V | |
| Net Weight | 73 Kgs | 115 Kgs | 200 Kgs | 350 Kgs |
