Pneumatic Lead Forming Tool
Model: AR Series
Category: Machine Tools / Others / Other Machinery
Characteristics
● Most kinds of components are available, die is customized.
● Single strike to form and cut.
● Small and compact, change dies easily.
● Die is customized upon forming spec. for more dies.
● Provide you suitable solution upon the forming drawing with spec.
Specifications
AR-108 Air Drive Forming Machine ─ Single Cylinder
● Single forming direction.
Dimention: 420(L) x 300(W) x 200(H)
N.W.: 8Kgs
Air Source: 5Kgs / cm²

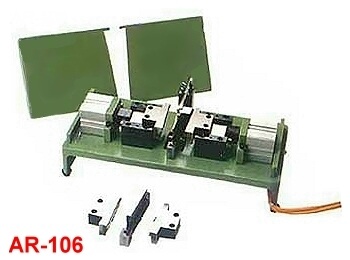

AR-106 Air Drive Lead Forming Machine ─ Twin Cylinder
● Twin cylinders form and cut form both sides.
● Trapezoid sie base is available.
Dimention: 420(L) x 300(W) x 200(H)
N.W.: 10Kgs
Air Source: 5Kgs / cm²
Available Pitch: 7~20mm
AR-110 Air Drived Lead Cutting Machine ─ Single Cylinder
● Air drive cutter.
● Driverse holes on cutting plates for different part leads.
● Cutting plate can be tailored for odd parts.
● After-cut lead length is fixed, please, advice upon order.
Dimention: 280(L) x 150(W) x 130(H)
N.W.: 8Kgs
Air Source: 5Kgs / cm²
After-Cut lead length: 0.4~6.5mm, customized available
