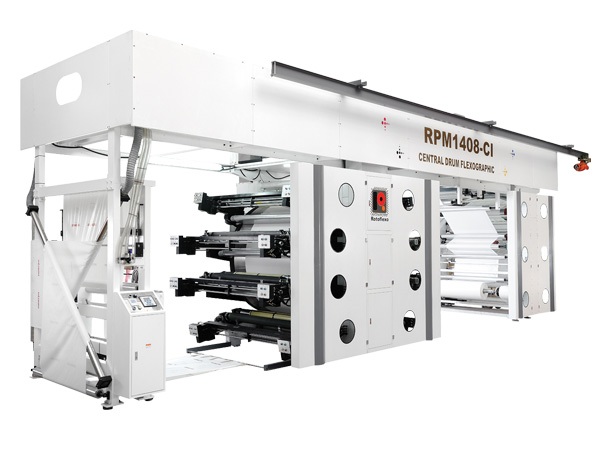

flexographic printing press
Model: RPM CI
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Flexo Printing Machines
Characteristics
Main feature:
Model: RPM CI series
Number of colors 4/6/8/10
Gearing size 5mm,10mm,1/4",10DP
Printing width 600/800/1000/1200/1400/1600/1800mm
Application OPP,PP,PE,Paper,Woven Bag etc.
MAX. speed 200MMIN,250M/MIN,300/MIN.
Repeat lenght 800mm,1000mm MAX.
Repeat lenght 320mm,350mm MIN.
Roll dia. rewinder 800mm MAX.
Roll dia. unwinder 800mm MAX.
Double side printing Yes
CE yes
Specifications
Description: |
Strong cast iron construction all the machinery. |
Printing decks movement by motorizedand as standard function. |
Automated horizontal sequential throw-off function by PLC control avoid inking problem in plate is a standard feature. |
Equipped the helix gear transmission system to enhance precision of printing and low noise requirement. |
The design central impression printing press guarantied very nice registration proven versatile printing. |
Cretral drum cylinder with cooling system. |
Closed chamber doctor blade system for each printing unit. |
Quick change over sleeve system is available as options. Full side double side printing turning-bar system |
Customize is available to built press by demand. |
