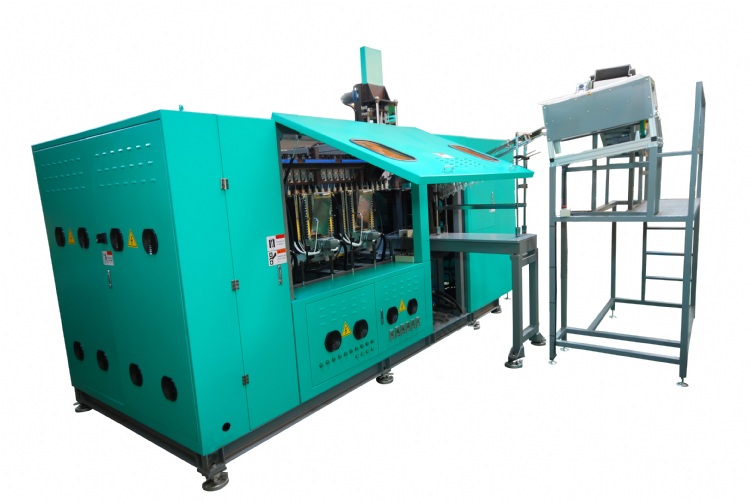

Fully Electric PET Stretch Blow Moulding Machine-CPSB-L1G



Model: CPSB-L1G

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PET Stretch-Blow Molding Machines



Online Inquiry





Characteristics



L series can provide the bottles for：Water, CSD, Juice, Teas, Alcohol drinks, Oils, Sauces, Ketchup, Cosmetics.
Features：
Feeding System
�P Top-mounted unscrambler for saving space
�P Multiple protection devices for precise preform feeding and ejecting feeding system
�P Continuous preform feeding system (Same as CHUM POWER Rotary technology)

Transfer System
�P Compact preform-chain pitch design for efficient heating and reduce energy consumption
�P Horizontal rotation transfer system to eliminate preform flipping

Heating System
�P Easy access for oven maintenance and lamp changing
�P Cooling ramps throughout for maximum preform neck protection
�P Excellent ventilation system to ensure cool preform surface
�P Infrared heat sensor for preform temperature monitoring

Transfer and Variable Pitch System
�P Servo driven preform transfer system with grips assembly mounted on timing belt
�P Servo driven Variable Pitch System for quick transfer and precise preform locating

Blowing and Clamping System
�P Servo driven clamping system with synchronized base mold operation

Pressure/ Blowing System
�P Precision electromagnetic valves for fast responding time and high volume production

Control System
�P Touch-panel control system for simple operation
�P 10.4” LCD touch screen with 64k colors

Others
�P Fully electric mechanism to ensure high-speed operation and precise locating
�P Design for quick mold change
�P Low energy consumption, low wear, low pollution
