Specifications

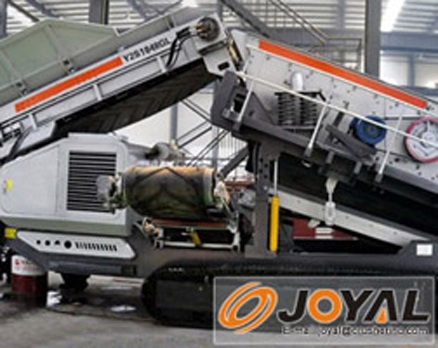

Introduction of Joyal Crawler Mobile Crusher Screen

Crawler Mobile Crushing and Screening Station is of high cost-performance ratio, and it is reliable in performance and reasonable in structure. Crawler Mobile Crusher applies the advanced technology with the international level. Crawler mobile crushing & screening plant is widely used in road & bridge construction, metallurgy and so on.

Features

1. High cost-performance ratio.
2. Reliable quality and beautifully structured.

Application

Crawler type mobile crushing & screening plant is widely used in road & bridge construction, metallurgy and other fields to crusher and screen.

Vibrating Screen: 2ZS1848, 3YZS1860, 3YZS2160
Closed hopper volume (M3): 5, 6, 8
Closed hopper Height (mm): 4300, 5000, 5000
Feeding Belt: B800X7.2, B1000X8.5, B1000X8.5
Screen Under Belt: B800X7, B1000X8, B1000X8
Screen Under Belt Discharge Height (mm): 3500, 3500, 3500
Side belt: B500X5, B650X5, B650X5
Side belt Discharge Height (mm): 3500, 3500, 3500
Front Belt: B650X7, B800X8, B800X8
Front Belt Discharge Height (mm): 2800, 3000, 3000
Power (KW): 120, 150, 180
Transportation Length (mm): 12000, 13500, 1400
Transportation Width (mm): 3050, 3200, 3400
Transportation Height (mm): 3500, 4100, 4100
Transportation Weight (T): 30, 36, 42
