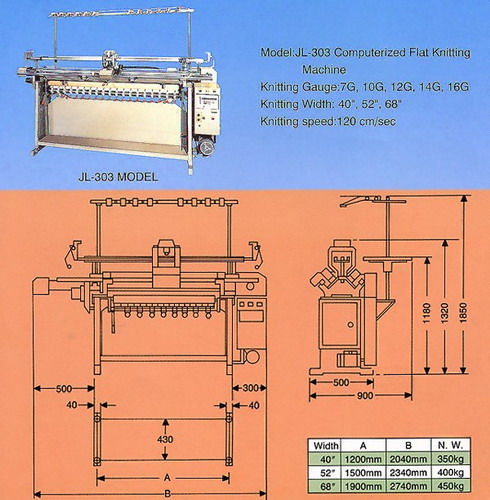

Computerized Flat Knitting Machine for Collar and Sweater Knitting
Model: JL-303
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Flat Knitting Machines
Characteristics
Program is stored at I/C card and input to other machine.
The machine is compiled program by key board without other auxiliary equipment.
It is adjustable for knitting width without any location limited.
Feature of single carriage can knit best quality of wide or narrow textile.
Specifications
Model: JL-303
Gauge: 7, 8, 10, 12, 14 and 16
Bed width: 40"(101cm), 52"(132cm), 68"(172cm)
Carriage speed: 100-120 cm/sec
Knitting width: Can be setted freely
Yarn feeder: Single feeder
Cam driving: Solenoid driving
Stitch density: 0-99 stepping motor
Yarn Color: 6 colors both side change
Racking 1/2 P x 1 seetion, 1P x 5 section
Rahben: H-needle tuck, L-needle tuck, all needle tuck
Needles used: High and low butt
Take down: Automatic auxiliary roller moves with fabric take-down
Data input: Direct input from keyboard, memory by I/C card
Driving: 1/2HP, 3 phase, AC motor acmotor by frequency converter control
Power: 220V, 50/60Hz, single phase
Dimension: 80 x 234 x 185 (cm) / L.W.H for 52"
