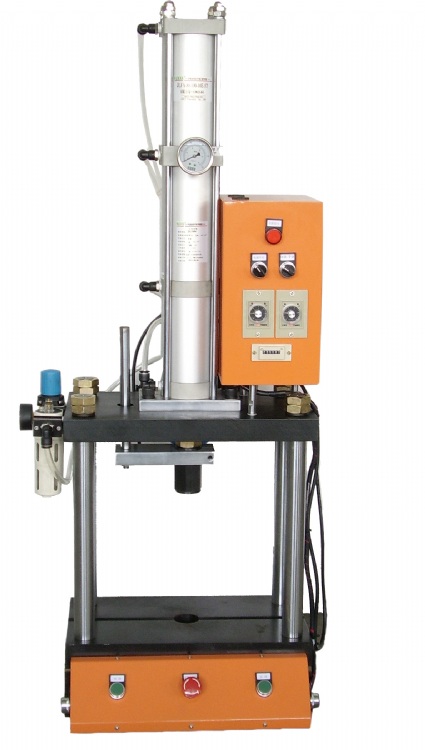

High quality WELLNA WNHB hydraulic press machine and pneumatic press machine
Model: WNHB-100-10E-240-5T-220V
Category: Machine Tools / Metal Forming Machine Tools / Hydraulic Machinery
Characteristics
Condition: New
CNC or Not: Normal
Power Source: Hydraulic
Place of Origin: Guangdong, China (Mainland)
Brand Name: WELLNA
Model Number: WNHB-100-10E-240-5T-220V
Voltage: 220V
Weight: 240kg,240KG
Dimension(L*W*H): 370*630*1375MM
Certification: CE
Warranty: one year
After-sales Service Provided: Overseas service center available
height: 260
cylinder: Diameter 100*100
MODEL: WNHB-100-10T
power: AC220V 50HZ
driving pressure: 0.4-0.7MPA 6240KGF-10920KGF
Brand: WELLNA
Manufacture: WELLNA
Location: GUANG DONG of China contact: IRIS SU .
Specifications
Specifications
1.10T pneumatic press machine
2.high quality small pneumatic press machine
3.good service manual hand press machine
4.PRESS
Machine press : 10T pneumatic press machine small pneumatic press
manual hand press machine hydraulic press machine
Characteristics of four column press:
- With pressed air as the power, simple to operate.
- Making no noise during standby of the oil hydraulic system, saving the electricity and reducing production cost.
- Cylinder stroke adjustable and customized for special request.
- Easy to adjust the output, the required pressure can be reached by simply adjusting the pneumatic pressure, easy and convenient.
- Safe and human-centered design, comfortable and durable operation.
- Allows adding heating modules and temperature controller, as well as forcing transducer additionally.
- Available working platform: 500*560*610mm
Specification of four column press:
Model | WNHB-63-3T | WNHB-80-5T | WNHB-100-10T | WNHB-125-15T |
Max height | 260 | 260 | 260 | 260 |
Cylinder specification |
Ø63*100mm |
Ø80*100mm |
Ø100*100mm |
Ø125*100mm |
Power |
AC220V,50Hz |
AC220V,50Hz |
AC220V,50Hz |
AC220V,50Hz |
Driving pressure |
0.4-0.7MPa |
0.4-0.7MPa |
0.4-0.7MPa |
0.4-0.7MPa |
Weight |
160kg |
180kg |
240kg |
280kg |
Driven pressure |
Theoretical output |
Theoretical output |
Theoretical output |
Theoretical output |
0.4MPa |
2000Kgf |
4000Kgf |
6240Kgf |
10240Kgf |
0.5MPa |
2500Kgf |
5000Kgf |
7800Kgf |
12800Kgf |
0.6MPa |
3000Kgf |
6000Kgf |
9360Kgf |
15350Kgf |
0.7MPa |
3500Kgf |
7000Kgf |
10920Kgf |
17900Kgf |
Application of four column press:
Stamping sign Bending profile
Punching die Die cutting rigid material
Touch-welding profile Squeezing die and forming
Flattening and straightening Riveting and forging
Shaping metal plate Closing assembly
Testing material Riveting joint
