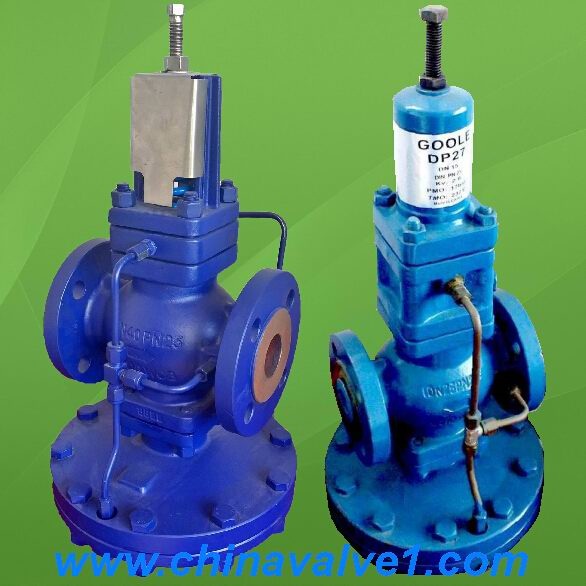

Pilot operated pressure reducing valve
Model: DP27
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Valves
Characteristics
DP27 Pilot operated pressure reducing valve is the new type pilot extra-huge membrane pressure reducing valve developed by our company. It is greatly improved on basis of normal pressure reducing valve. The membrane use new material, enlarging the working area, so the slight change of upper pressure or lower pressure can be fed back to membrane of main valve, and adjust the opening of main valve to ensure the constant pressure of lower stream pressure.
Note: A variable rate conical pressure adjustment spring is fitted providing a down stream pressure range of 0.2-17bar g.
Specifications
DP27 P
ilot operated pressure reducing valve
Pressure Rating: 1.6- 2.5Mpa
Specification: DN15-50
Material: Steel WCB
Standard flanges: DIN, ANSI, JIS
DP27 Pilot Operated Pressure Reducing Valve's main technical parameters and indexes of performance
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DP27 Pressure Reducing Valve 's material of main component :
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DP27 Pressure Regulator 's connecting dimension
|
Other Information
http://www.chinavalveworld.com/
Payment:T/T
Delivery:FOB
Origin:China
Minimum Order:1
Packaging:standard
