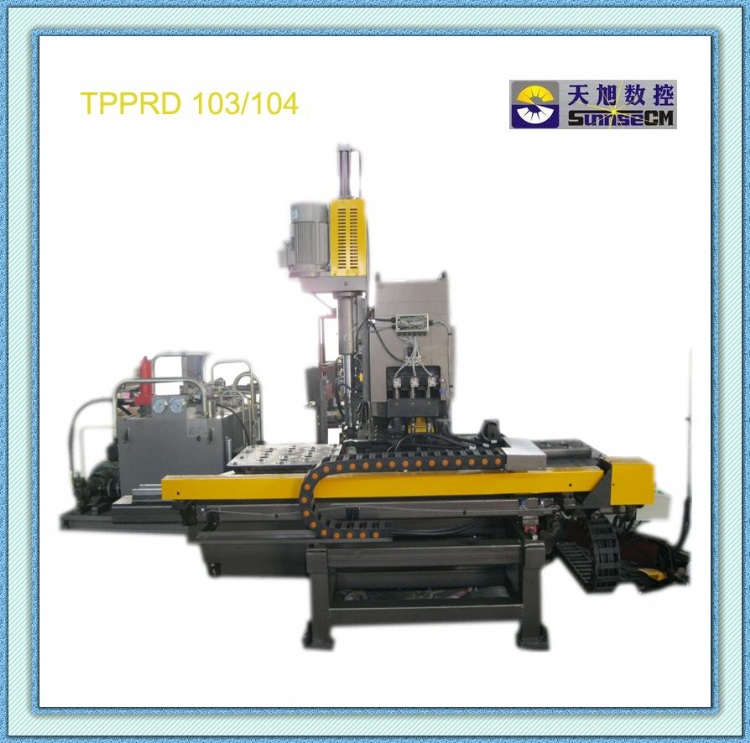

CNC Plate Punching And Drilling Machine
Model: TPP103
Category: Machine Tools / Drilling Machines / Multi-Spindle Drilling Machines
Characteristics
CNC HYDRAULIC PUNCHING & MARKING MACHINE FOR PLATES
Applicable Industry
Special CNC machine for punching and marking of steel plates in the field of steel tower industry. It is also used to punch and mark of steel plates of other industries.
SPECIFICATIONS
Model TPP103 TPP104
Max size of work piece LW(mm) 1500800 15001000
Max. punching diameter (mm) 26
Plate punching thickness (mm) 525 (Q235)
Punching force (kN) 1000
Marking force (kN) 800
Min. distance between hole and plate edge (mm) 25
Character size(mm) By customers request
No. of character 1018
Die-stations 3
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface, floppy disk and USB interface
Overall dimensions LWH (mm) 320030001900 350030001900
Machine weight (kg) 5420 5800
We welcome customers to visit our factory at any time. No wait, please order now!
Specifications
CNC HYDRAULIC PUNCHING & MARKING MACHINE FOR PLATES
Applicable Industry
Special CNC machine for punching and marking of steel plates in the field of steel tower industry. It is also used to punch and mark of steel plates of other industries.
SPECIFICATIONS
Model TPP103 TPP104
Max size of work piece LW(mm) 1500800 15001000
Max. punching diameter (mm) 26
Plate punching thickness (mm) 525 (Q235)
Punching force (kN) 1000
Marking force (kN) 800
Min. distance between hole and plate edge (mm) 25
Character size(mm) By customers request
No. of character 1018
Die-stations 3
Precision Accordance with GB2694
Programming mode Input by keyboard, RS232 interface, floppy disk and USB interface
Overall dimensions LWH (mm) 320030001900 350030001900
Machine weight (kg) 5420 5800
