drilling machine

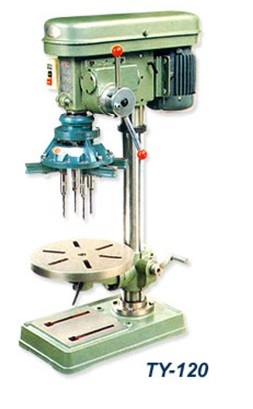

Model: TY-120
Category: Machine Tools / Drilling Machines / Multi-Spindle Drilling Machines
Characteristics
FEATURES
When the automatic or semi-automatic drilling is equipped with coolant tank , one operator can operate several drilling machines. It provides effortless operation while greatly increasing efficiency.
Specifications
|
TY - 120 |
TY - 250 |
||
Axis |
( A ) M. T. 2# |
3# |
||
( B ) J. T. 2 1/2 # |
2 1/2 # |
|||
Maximum drilling capacity |
ø 16 |
ø 25 |
||
Axis stroke |
93 |
130 |
||
Countertops with axis distance |
420 |
630 |
||
Base and the axis distance |
620 |
930 |
||
Column outside diameter |
ø 80 |
ø 102 |
||
Table diameter round |
ø 320 |
ø 420 |
||
Drilling highly |
1080 |
1540 |
||
Motor |
1HP |
2HP |
||
Speed |
Conversion rate |
4 |
6 |
|
Frequency |
50Hz |
480-1980 |
200-1600 |
|
60Hz |
560-2100 |
210-1700 |
||
Weight |
without motor |
79 |
173 |
|
With motor |
95 |
198 |
