CNC automatic punching marking shearing production line
Model: JX2020S
Category: Machine Tools / Others / Other Machinery
Characteristics
Strength CNC angle punching machine

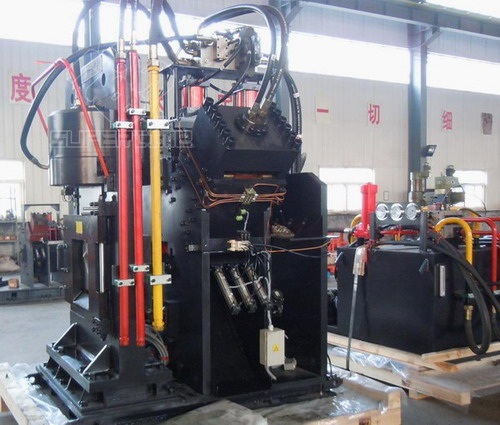

JX2020S CNC automatic punching machine
Specifications
CNC ANGLE PUNCHING MACHINE
1) Model JX0808,JX1412,JX2020, JX2020S for steel towers material ,angle bars processing
2) Self-programming software ,easily operate
3) PLC+NC control system
4) 12 Month free sale-service
5) 10-15 years using life as per different using environment
Function Punching Marking Shearing
Model JX2020S JX1412
Angle size 16Mn (σb=480N/mm2) 63×63×4~200×200×16
40×40×3~140×140×12
Angle size Q235A (σb=400N/mm2) 40×40×3~140×140×14
Max. punching Capability(D×T) 16Mn (σb=480N/mm2)Φ26×20 Φ26×12
Max. punching capability(D×T)
Q235A(σb=400N/mm2) Φ26×20 Φ26×12
Punching nominal force(KN) 1000 550
Marking nominal(KN) 1000 600
Shearing nominal(KN) 1200 1000
Work piece length max.(m) 14 10
Adjustment range of stadia(mm) 30-170 20-110
Punchers number each side 3 2
Marking groups 4
Dimension of characters (mm) 14×10 or 16x10
Shearing mode Double-blade cutting Double-blade Cutting
CNC axes number 3
Infeeding speed(m/min) 40
Overall dimension(m) 32×7×2.6 23.8×7×2.2
Net weight(Kg) 20000 17000
More information, feel free to contact us .
