PRESS BRAKE

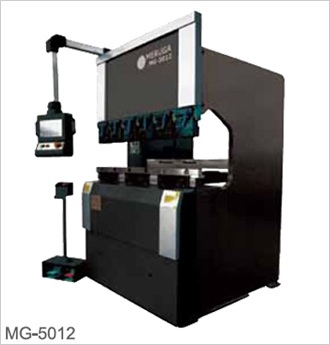

Model: MG-5012
Category: Machine Tools / Metal Forming Machine Tools / Bending Machines
Characteristics
Main Function for MG Series¡G
Simple and Safe marking line function
Standard Footswitch equipment
The lower workbench stop position controlled by NC system
Speed change control by NC system
3 point Back-gauge block position
Changing the position of back-gauge block switch
Changing mold function
Easily bend the material to positive R-shape by program
Universal upper mold Quick Motion Clamping device
Specifications
Machine specification
Capacity¡G500 kN
Working Length¡G1250 mm
Stroke length¡G100 mm
Back-guage stroke¡G500 mm
Max. pressure¡G28.3 mPa
Cylinder quantity¡G1
Hydraulic oil tank capacity¡G50 L
Machine weight¡G2000kg
PD-2/PD-3 (Control device) MERUGA
Control Method¡GNumerical control(by Panasonic)
Input Method¡GTouch screen
Display Method¡G10 inch LCD Display
Control Axis¡G2 axis/3 axis
Speed of L axis¡GMax.10 m/min
Speed of D axis¡GMax.1.2 m/min
Speed of Z axis¡GMax.6 m/min
Memory capacity¡G100 programs, each program contains 24 steps
Lower limit position control method¡GActual encoder position reading
Speed change method¡GActual encoder position reading
R step bending function¡GYES
Entry mode of program title¡G21 English letters or numbers are available
Processing quantity counter function¡GYES
