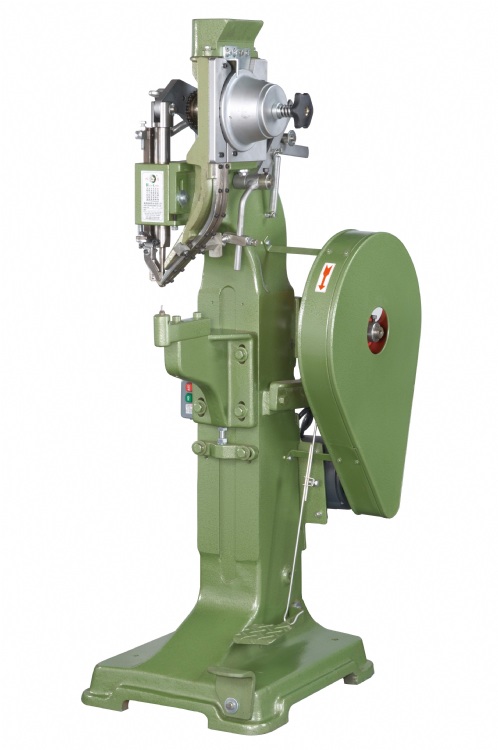

Riveting Machine
Model: HC-8RE
Category: Machine Tools / Metal Forming Machine Tools / Riveting Machines
Characteristics
The body is made of cast iron. Low noise and good shock-absorbing ability. The function is simple for workers to adjust and use.
Specifications
Throat depth: 250 mm
Rivet tube diameter: 2.5~4 mm
Rivet length: 3~20 mm
Motor: 1/4 HP
Height from floor to bottom mold: 820 mm
Net weight: 225 kgs
Gross weight: 280 kgs
Dimension of machine(LxWxH): 770x480x1400 mm
