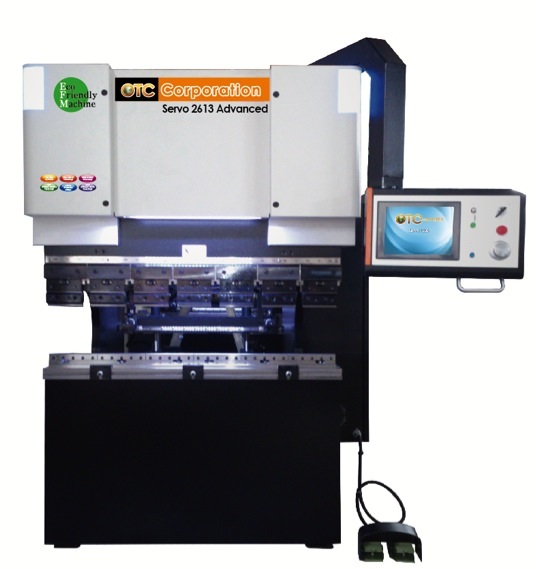

Hybrid Press Brake
Model: Servo 2613 Advanced
Category: Machine Tools / Metal Forming Machine Tools / Bending Machines
Characteristics
easy to operate
60% less power usage
high speed, high efficiency, high accuracy
Specifications
Maximum press width(including control pananel) 2,544 mm
Table width 1,300 mm
Distance between frames 960 mm
Press height from floor 2,273 mm
Table height 825 mm
Maximum press depth 1,469 mm
Open height 376 mm
Stroke 283 mm
Capacity 150 mm
Bending Length 260 kn
Down stroke 1,300 mm
Bending 120 mm/sec
Up stroke 20 mm/sec
Up stroke 120 mm/sec
Backgauge Fore-aft Stroke 500 mm
Backgauge Fore-aft Speed 30 m/min
Backgauge UP/Down Stroke 90 mm
Backgauge UP/Down Speed 3 m/min
Backgauge Longitudinal Stroke -360_ 360 mm
Backgauge Longitudinal Speed 30 m/min
Machine Weight 3 ton
Work status display 3 Colored LED
Operation TOUCH PANEL
Monitor Size 12 inch TFT
Program Number 200 set
DimensionsLXWXH 2,544x1,469x2,273
