Floating BallFloating Ball
Model: Floating Ball
Category: Mold and Die Industry / Others Molds / Kiln molds
Characteristics

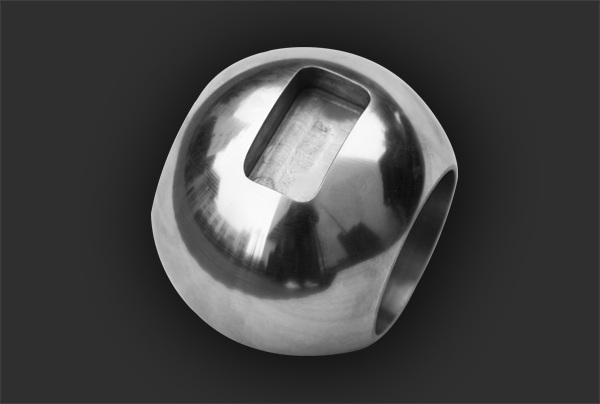

Floating Ball for Ball Valve
Size: NPS 2-18 (DN50-600)
Pressure Rating: Class 150~600(PN16~100)
Base Material: ASTM A105, A350 LF2, A182 F304, A182 F316, A182 F6A, A182 F51, A182 F53, A182 F55, A564 630(17-4PH), Monel, Inconel.
Coatings: ENP, Chrome Plating, Tungsten Carbide, Chrome Carbide, Stellite, Inconel, Special.
Support Type: Seat
Drive: Rectangle Socket
Roundness: 0.01-0.02
Roughness: Ra0.2-Ra0.4
Coaxiality: 0.05
Packaging Detail: wooden cases; pallet; containers http://qlvalves.com
Specifications
Floating Ball for Ball Valve Size: NPS 2-18 (DN50-600) Pressure Rating: Class 150~600(PN16~100) Base Material: ASTM A105, A350 LF2, A182 F304, A182 F316, A182 F6A, A182 F51, A182 F53, A182 F55, A564 630(17-4PH), Monel, Inconel. Coatings: ENP, Chrome Plating, Tungsten Carbide, Chrome Carbide, Stellite, Inconel, Special. Support Type: Seat Drive: Rectangle Socket Roundness: 0.01-0.02 Roughness: Ra0.2-Ra0.4 Coaxiality: 0.05 Packaging Detail: wooden cases; pallet; containers http://qlvalves.com
