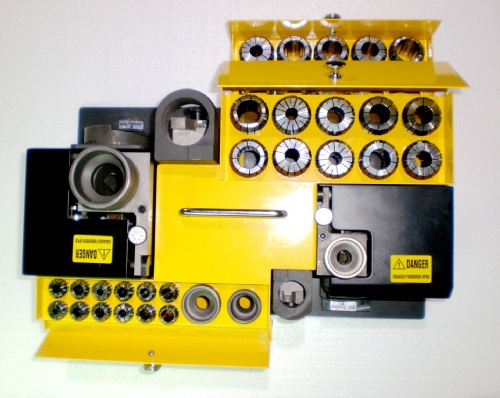

Complex Grinding Machine (Drills 2mm-32mm)
Model: YN-09A
Category: Machine Tools / Single & Special Purpose Machines / Special-Purpose Machines for Secondary Processing
Specifications
APPARENT SIZE L446*W292*H200 (MM)
APPLIED DRILL ψ2-ψ32
EDGE ANGLE YN-01 90°-140° YN-01B 118°-140°
VOLTAGE SINGLE PHASE AC110V / AC 220V ; 50 / 60HZ
WHEEL SPEED 6000RPM
GRINDING WHEEL CBN#140 FOR HSS DRILL (ψ2-ψ13)
CBN#100 FOR HSS DRILL (ψ13-ψ32)
WEIGHT 26KG
