4 Axis + Draw + Roll + 1D Bending in 1 Pipe Bender
Model: V series pipe bender
Category: Machine Tools / Metal Forming Machine Tools / Tube (Pipe) Bending Machines
Characteristics
The V series CNC tube benders combine 4 Axis, Draw, Roll and 1D Bending technology.
This combination allows 2 different fixed radiuses and multiple large roll bending radiuses in a single part, as well as a programmable carriage boost for CLR = 1D Bending. This pipe bender coupled with Individual Pressure Die Systems assist in each draw bending stack, this series pipe bender brings superior performance and flexibility.
Specifications
Draw + Roll +1D Bending

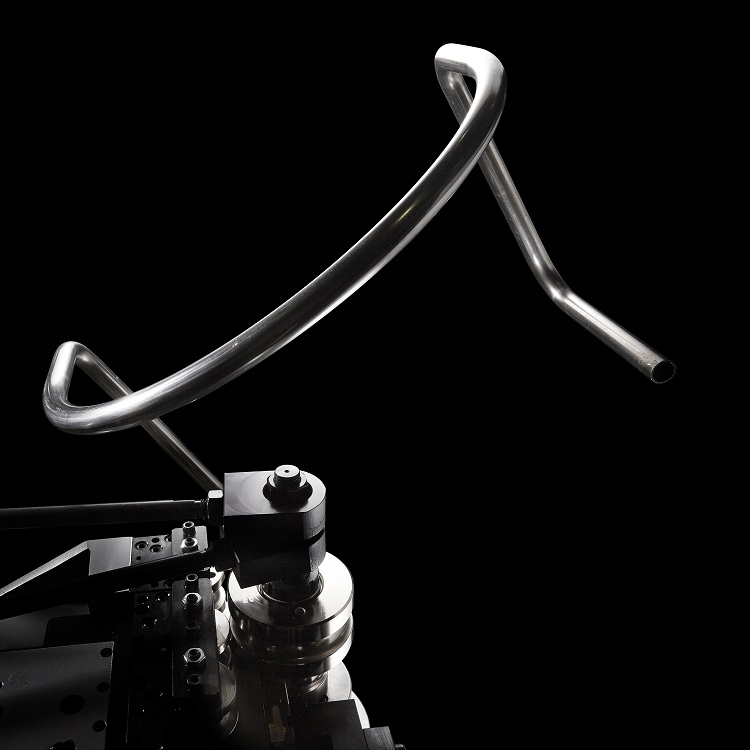

The technology can create a part which has multiple draw bending radiuses (R1 & R2 ), while creating a larger radiuses through the roll bending process. Coupled with a settable carriage booster, it allows bending radiuses as small as 1 X OD.
SB-51X4A-3SV
CNC tube bender with capacity up to Ø 50.8mm, Draw and Roll bending, 4 electric axes and 1~ 3 stacks of tooling
