2/2-way diaphragm valve with manually operated actuator

Enlarge

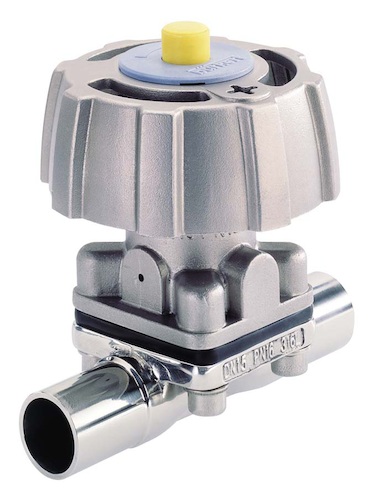

2/2-way diaphragm valve with manually operated actuator

Model: Type 3233

Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Sanitary Stainless Steel Tubes,Tube Fitting,Valves & Pumps

Online Inquiry

Characteristics

The manually operated diaphragm valve Type 3233 consists of a manually operated actuator, a diaphragm and a 2-way valve body.
The manual actuator, optionally with a plastic or stainless steel handwheel, ensures use in hygienic or aggressive ambient conditions.

The flow-efficient valve bodies with little dead space enable high flow rates and a wide range of possible uses.
The valve body and the diaphragm are available in all common materials and variants.

The actuator has a compact, autoclavable design and is compatible with all other Bürkert diaphragm valves.

An explosion-proof ATEX / IECEx device variant is available.
The add-on body and the handwheel are optionally available in plastic or stainless steel and are equipped with an integrated optical position indicator.

The manual actuator can be optionally equipped with a stroke limiter, sensors for position feedback and a locking function.

■ Valve body and diaphragm are available in various materials and variants
■ Product wetted surfaces in Ra ≤ 0.38 µm...1.6 µm (optionally electropolished)
■ Available in all common connection sizes and variants
