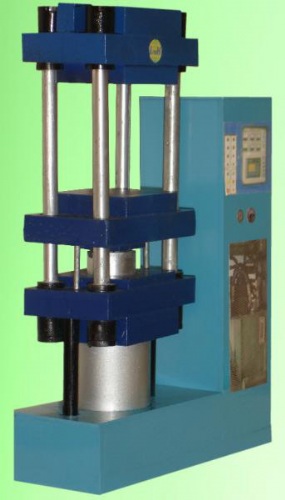

Hydraulic Rubber Forming Machines
Model: HY-L90/HY-L110/HY-L145/HY-L210
Category: Plastic and Rubber Industry / Rubber Processing Machinery / Other Rubber Processing Machines
Characteristics
1. It adopts the hydraulic cylinder with a power-boosting device (Taiwan invention patent no. 194274), thus becoming the hydraulic rubber forming machine with a power-boosting device (Taiwan patent no. M297311 / China patent no. ZL2006201241788).
2. It only requires a low pressure hydraulic unit with the features of lowest cost, most convenient maintenance and safest operating environment.
3. The low pressure hydraulic unit features minimal power and maximum power saving.
4. With the interior cylinder pressure boosted, the max. clamping force reaches 300kg/cm amazingly. Since the internal diameter of hydraulic cylinder is small, it can quickly clamp the mold.
Specifications
MODEL ()ҤO
Clamping Force(Tons) Lؤo
Plate Dimension(m/m) ̤j}Ҧ{
Clamping Stroke(m/m) oO
Pump Motor(HP) ؤoMachine Dimension(m/m)
(H x L x W)
HY-L90 90 450x500 380 1.5 1750x1600x700
HY-L110 110 500x550 400 2.0 2000x1750x800
HY-L145 145 550x550 450 2.0 2150x1850x800
HY-L210 210 600x600 500 3.0 2350x2000x900
