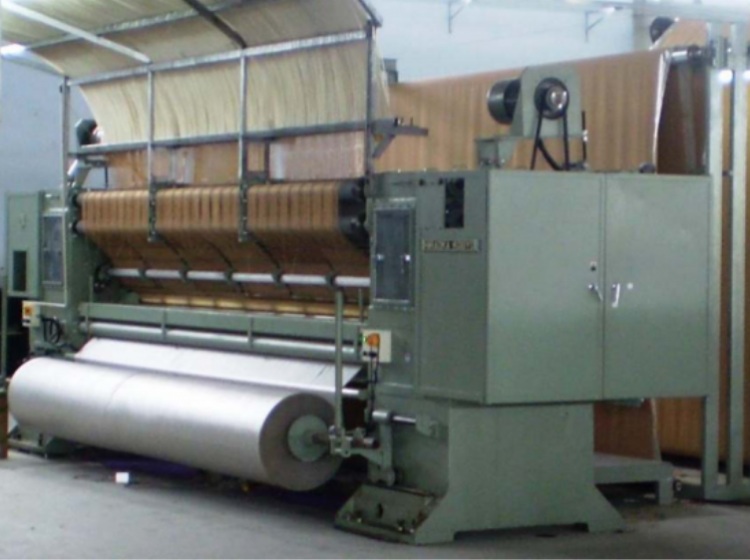

Cut and loop tufting machine
Model: ALT 404
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Needle Punching Machines for Nonwoven Fabric
Characteristics
High safety by not using high pressure air.
No need of drier, air piping or compressor because of non air system.
Easy maintenance by changing cassettes.
A lot of parts are no longer needed. Think of solenoid valve or air cylinder piping.
Huge economy on electricity compared to conventional air tufting.
Very user friendly, operation is by Windows Pc.
Specifications
ufting machine in cut and loop to produce original designs. It reproduces any pattern dots similar to real carpets like jacquard carpets. You only need to make the pattern on pc, then you can immediately start tufting carpets.
We can also modify your existing tufting machinery with a cut and loop tufting system.
Tufting Methods:
- HLL - High Low Loop: Yarn feeding method by piezo system to switch the length of pile to 'high and low', by the upper position feeding mechanism controlled by Piezo cassettes.
- LCL - Level Cut And Loop: Cut and loop method by piezo system to switch 'cut and loop', by the lower position cut and loop mechanism controlled by piezo cassettes.
- HCLL - High Cut Low Loop: Yarn feeding method by piezo system and cut looper with spring. To switch the length of pile to 'high and low' by the upper feeding mechanism, and additional cut looper with spring enables 'high cut' and 'low loop'.
- HL-CL - High Low Cut and Loop: Tufting machine that has both of the upper High Low Loop mechanism and the lower Cut and Loop mechanism. The machine has all the functions of HLL, LCL and HCLL.
Width of the carpet full repeat: 1,5 ; 1,8 ; 2 ; 2,5 ; 3 and 4 meter.
Pitch gauge in inch: 1/10, 1/8, 5/32, etc.
