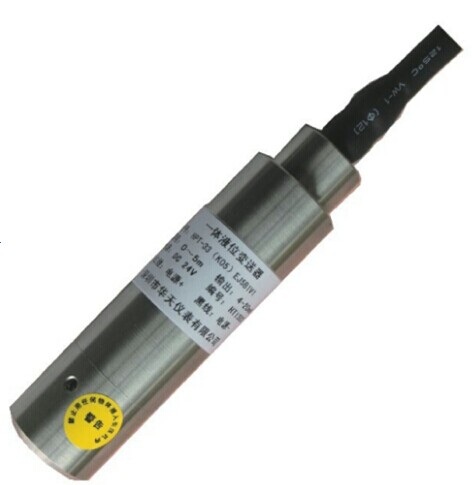

Integrated level transmitter
Model: HPT-33
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
Features：
Wide measuring range ：0∼1∼500m.
High precision.
Good stability：≤0.2%FS.
Wide working temperature：-20∼85℃.
Good corrosion resistance.
Guide gas cable transmission.
Three heavy lightning anti-interference design.
Anti condensation process.
Specifications
Applications：
The oil industry, chemical industry,Electric power.
Hydraulic pressure system,Pneumatic system.
Energy and Water treatment system.
Automation equipment.
Industrial process control.
Performance parameters
Range（m） : 0~500
Pressure mode : Gauge Pressure、absolute pressure
Output signal : 4∼20mA or others
Nonlinearity(%FS) : ≤0.1 ≤0.25 ≤0.5
Hysteresis(%FS) : ≤0.1 ≤0.25 ≤0.5
Repeatability(%FS): ≤0.1 ≤0.25 ≤0.5
Zero drift (%FS/℃): ≤0.02
Temperature drift(%FS)≤0.02
Stability (%FS/Year): ≤0.25
Working voltage(V) : 12~36V DC(Standard：24V)
Working temperature(℃): -20~85℃
Overload capacity(%): 300
Life span: more than 9 million times pressure cycle
Load resistance (Ω): R=(U-12.5)/002-r
Response time (ms): ≤1
Measurement of medium: Mediums compatible with 316L
Diaphragm material: 316L
Housing material : 1Cr18Ni9Ti
Protection grade: IP68
Weight:120g
