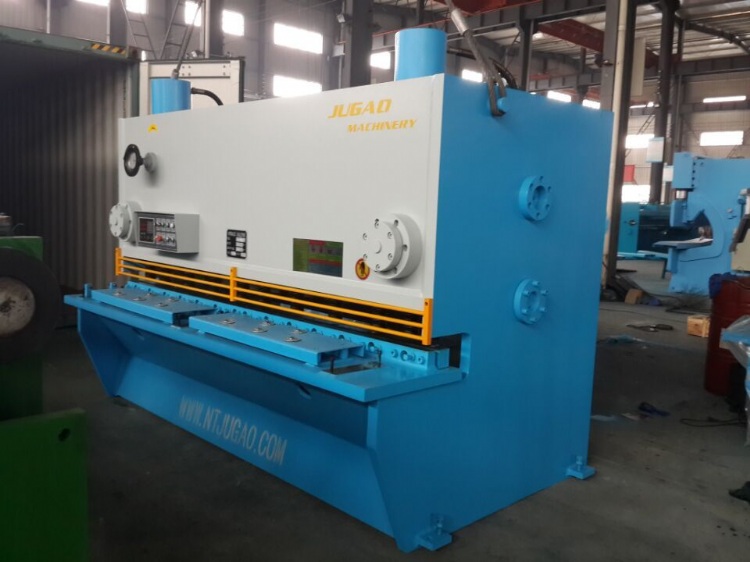

Hydraulic Guillotine shear
Model: QC11Y
Category: Machine Tools / Metal Forming Machine Tools / Shearing Machines
Characteristics
Keywords: cnc shearing machine,guillotine machine,guillotine metal cutting machine,guillotine shear,guillotine shearing machine,hydraulic guillotine shearing machine,hydraulic guillotine shears,hydraulic shear machine,hydraulic sheet cutting machine,hydraulic sheet metal cutting machine,metal cutting machine,metal guillotine,metal hydraulic shear,metal shear,metal shear machine,metal sheet cutting machine,shear machine,sheet metal shear,sheet metal shearing machine.
Features
1. Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.
2. Simplified blade gap adjustments to allow for a wide range of material types
3. Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
Specifications
No | Model |
Max cut thickness mm |
Max cut length mm |
Ram Stroke n/min |
Cutting angle ° |
Motor kw |
Machine Szie mm |
1 | 4x2500 | 4 | 2500 | 20-40 | 0.5-1.5 | 5.5 | 3100x1600x1700 |
2 | 4x3200 | 4 | 3200 | 20-40 | 0.5-1.5 | 7.5 | 3800x1800x1700 |
3 | 6x2500 | 6 | 2500 | 16-35 | 0.5-1.5 | 7.5 | 3150x1650x1700 |
4 | 6x3200 | 6 | 3200 | 14-35 | 0.5-1.5 | 7.5 | 3860x1810x1750 |
5 | 6x4000 | 6 | 4000 | 10-30 | 0.51.5 | 7.5 | 4630x2030x1940 |
6 | 6x5000 | 6 | 5000 | 10-30 | 0.5-1.5 | 11 | 5660x2050x1950 |
7 | 6x6000 | 6 | 6000 | 8-25 | 0.5-1.5 | 11 | 6680x2200x2500 |
8 | 8x2500 | 8 | 2500 | 14-30 | 0.5-1.5 | 11 | 3170x1700x1700 |
9 | 8x3200 | 8 | 3200 | 12-30 | 0.5-1.5 | 11 | 3870x1810x1780 |
10 | 8x4000 | 8 | 4000 | 10-25 | 0.5-1.5 | 11 | 4680x1900x1860 |
11 | 8x5000 | 8 | 5000 | 10-25 | 0.5-1.5 | 15 | 5680x2250x2200 |
12 | 8x6000 | 8 | 6000 | 8-20 | 0.5-1.5 | 15 | 6800x2350x2700 |
13 | 10x2500 | 10 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
14 | 10x3200 | 10 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
15 | 10x4000 | 10 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
16 | 10x5000 | 10 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
17 | 10x6000 | 10 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
18 | 12x2500 | 12 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
19 | 12x3200 | 12 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
20 | 12x4000 | 12 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
21 | 12x5000 | 12 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
22 | 12x6000 | 12 | 6000 | 6-20 | 0.5-2.0 | 30 |
6720x2500x255 |
|
|
|
|
|
|
|
