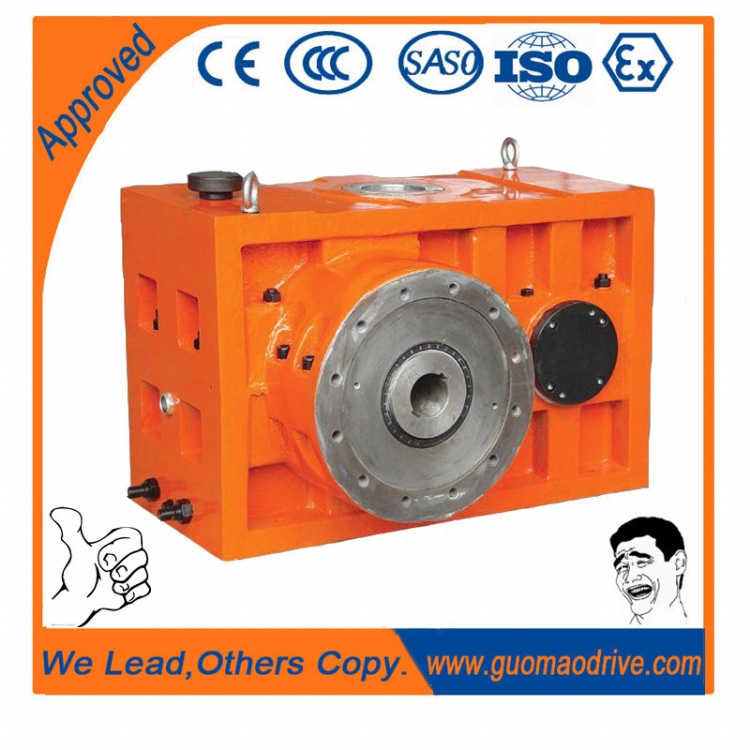

ZLYJ EXTRUDER GEARBOX
Model: ZLYJ extruder gearbox
Category: Machinery Parts and Components / Machinery Parts and Components / Gear Motors
Characteristics
extrusion gear box, extruder reducer, Gearbox for Plastic Extruder, Zlyj Gearbox, single Screw Extruder Gearbox, Extruder torque Gearbox, extruder gear unit, extruder gear box, ZLYJ gear reducer, extruder speed reducer,extruder gear box supplier
Specifications
ALL MODELS
ZLYJ112 ZLYJ133 ZLYJ146 ZLYJ173 ZLYJ180 ZLYJ200 ZLYJ225 ZLYJ250 ZLYJ280 ZLYJ315 ZLYJ330 ZLYJ375 ZLYJ395 ZLYJ420 ZLYJ450
®TYPE DESIGNATION(WITHOUT MOTOR)
Example: ZLYJ225-12.5-I
ZLYJ: ZLYJ series extruder machine gearbox
225: Model number of the gear box
12.5: Tansmission reduction ratio
I: mounting way.
®PARAMETER RANGE
Power range: 5.5 - 540 KW
Output speed(r/min): 08 - 20
Output Torque(N.M): 800-100000N.M
Axial thrust(KN): 35-770
®FEATURES
1. High strength alloy steel gear surface and thrust block specially designed for plastic screw extruder
2. Noise Level: Low type 65-80 Db, Smooth and stable in run
3. Compact, high in bearing capacity, stable in transmission, high efficiency
4. By forced lubrication and cooling system.
5. Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need
6. Unique modular design easy for cross country production, low stock, short delivery time.
7.The seal of output shaft part adopts double oil seal with perfect oil leaking resistance.Reliable sealing and more widely applicable to industry.
®MAIN APPLICATION
Rubber indusry, Plastic industry and other industry for extruder machine
