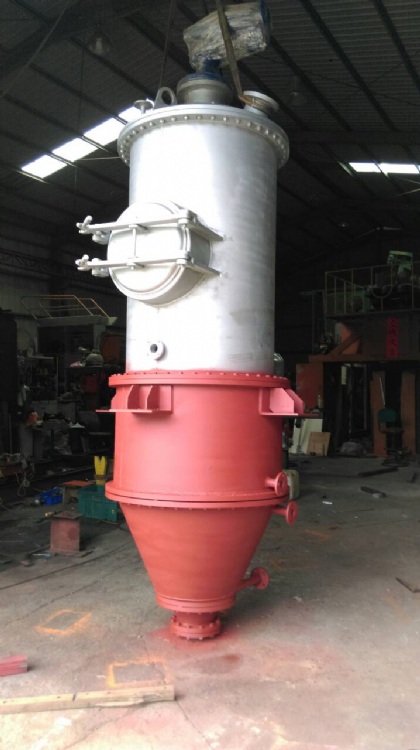

Scraper distillation machine
Model: CHI SHENG01
Category: Automatic/Industrial Machines & Equipments / Chemical Industry Machines / Solvent Reclamation Devices
Characteristics
Surrounding the main equipment: a condenser, a seal tank, the main distillation column, vacuum pumps, thermal oil heating tank
Body size: Φ970 * 2100 (the front end of a jacket heating, internal scraper devices)
Heating: oil heating system via the heat medium heating
Vacuum system: water-sealed system
Slagging mode: a lower slagging, nesting
Feed system: continuous feed
Capacity: (1) recovery time, fed into the body between 10 minutes to 20 minutes of material
(2) In the field of waste solvent-based
Vacuum: Factory Data (in Taiwan)
Cooling capacity: Our development is therefore key technology projects, confirmed the need for pre-order another to explain how to operate technology
Anti-explosion: explosion-proof design
Customer benefits: (1) Free manual removal of waste, reduce labor costs, in line with the requirements of factory automation operation
(2) material cost savings and environmental treatment costs
(3) to prevent the leakage of hazardous materials
(4) to avoid the loss of high-value materials
(5) to meet various application requirements distillation
