CNC Rotary tables 5 axis

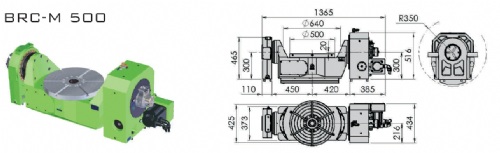

Model: BRC-M 500
Category: Machine Tools / Machining Centers / CNC 5-Axis Machining Centers
Characteristics
High accuracy 2 axis CNC tilting rotary table for use in 5 axis applications. Low weight for high capacity providing better dynamic response. Table net weight is just 550Kg. High accuracy in both tilt and rotary axis. Table load capacity is higher than others at 400Kg through full range of motion, 500Kg at 0 deg. Table top height from supports is 300mm (provides more Z axis travel than other tables).
Specifications
Table diameter: 500mm
Table height from supports: 300mm
Max workpiece diameter: 640mm
Tilt Range: -30 / +110deg
Working torque: 670 / 1130Nm
Max load: 500Kg
Table net weight: 550Kg
