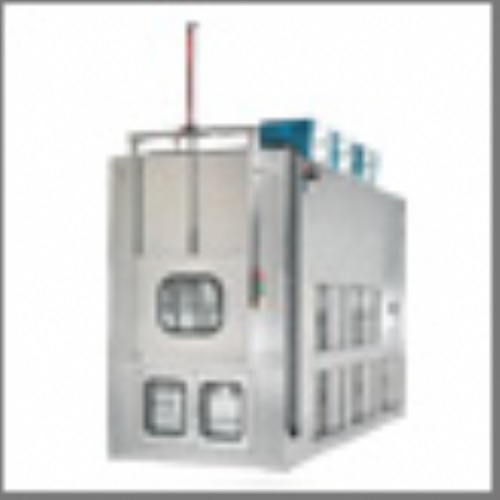

Automatic Ultrasonic Cleaning Machine
Model: UA-3600
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Surface Finishing Equipment
Characteristics
Utilizes 5.7 in color touch screen man machine P.L.C. control panel for easy and stable electric circuit operation, no traditional circuit malfunction problem. Touch screen man machine has monitoring screen. It may clearly monitor the operation conditions of each component of the equipment for easier management. LED digital display type lift up motor controller enables user to adjust the values of required positions more conveniently. Microcomputer PID automatic computation temperature control table. Supersonic wave utilizes large size crystal heat sink with good heat dissipation and good for long period operation. High efficiency load force provides stable output and would be affected by the load. Release stable oscillation wave for better cleaning of products. Output matching easy. Low malfunction ratio. High durability. Extends the service life of supersonic wave oscillator. Japanese made electric leak non-fuse electromagnetic valve switch is the electric leak safety device to protect the safety of man and equipment.
Specifications
Model No. UA-3600
Based on customer requirement to provide custom made dimensions
Size 3580 x 1340 x 2190mm ( L x W x H )
Weight around 1500KG @
Materials The enclosure of the machine is SUS304 stainless.
The outer shell is 1.6mm steel plate.
Color Stainless Green White
Voltage Voltage three phases three wires 220V / 380V / 440V @
Operation power supply 220V
Power 28KW @
Air discharge fan 220V / 60KW @
Electric heat pipe 220V / 24KW
Temperature controller The highest temperature reaches above 120XC @
Filter motor 110V / 40W @
Rotary lift motor 220V / 25W @
Ultrasonic Server 220V / 1200w @
Transporat motor 220V / 1HP
Door open method Install air opcrated door
Un install air opcrated door
Capacity 100~140 frame/hour @
