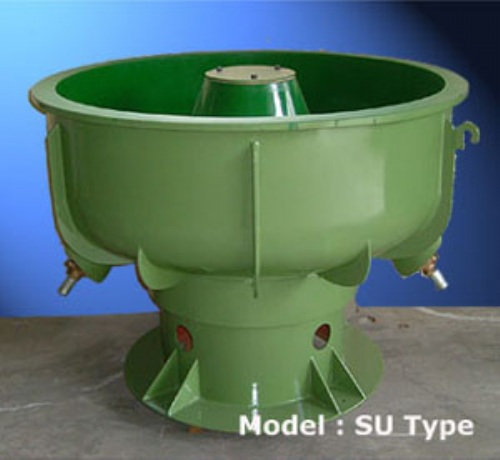

3-Dimensional Vibratory Finishing Machines
Model: SU TYPE
Category: Machine Tools / Grinding Machines / Grinding & Finishing Machines
Characteristics
By using 3-dimensional vibration grinder with high frequency vibration , the workpieces could be grinded, cutted and polished to a g|ossy surface. It moves in tespiral rolling flow while mixing workpieces with grandstones , steel point , grinding , compounds , etc.
Specially , it is available for workpieces of easy deformation , ports of irregular contour with holes , and/or dead corners.
The products will be equable in quality . Spot check can be made while the machine is working . So , it will safe time and ensure good quality.
Usage:
This machine does excellent jobs on finishing of stainless steels , ferrous , steels ; cast iron ,non-ferrous metals such as aluminum copper , brass , zinc , alloies and porcelain jade stones, corals, agate, suthetic resins, plastic, bamboo, wood, etc.
The workpieces could be grinded and polished to a glossy finish by selection of washing clean, removing rust and burrs, mediums, componds and adjusted frequence of vibration moter.
Specifications
Model@Volume@Weight@Volume of Mass@Motor (HP)@Diameter (mm)@Height (mm)
SU-5@@@5L@@13kg@@15kg@@2X 1/8HP@@300@@360
SU-15@@15L@@52kg@@45kg@@2X 1/4HP@@425@@550
SU-25@@25L@120kg@@100kg@@3X 1/2HP@@580@@650
SO-25@@25L@120kg@@100kg@@3X 1/2HP@@580@@650
SU-50@@50L@220kg@@150kg@@3X 1HP@@@700@@1000
SL-50@@50L@220kg@@150kg@@3X 1HP@@@700@@1000
SU-100@100L@360kg@@300kg@@3X 2HP@@@895@@1100
